796696-9
ActiveTE Connectivity AMP Connectors

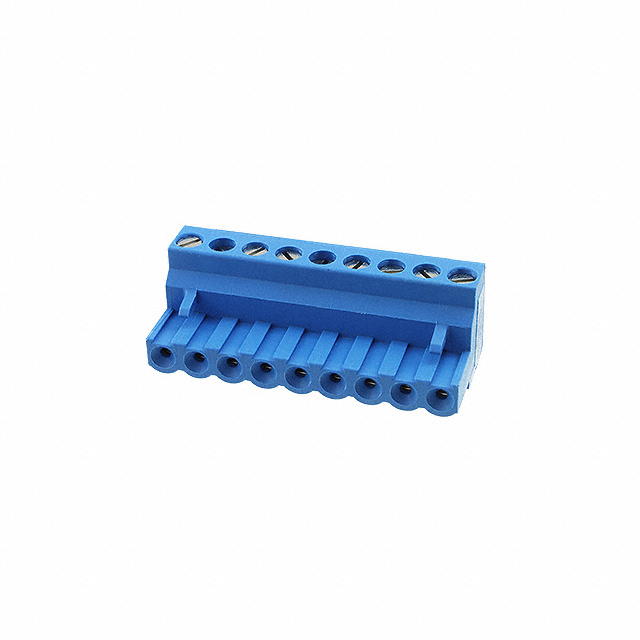

TERM BLOCK PLUG 9POS STR 5MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
796696-9
ActiveTE Connectivity AMP Connectors
TERM BLOCK PLUG 9POS STR 5MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 796696-9 | 796696 Series |
|---|---|---|
| Color | Blue | Blue |
| Contact Material | Phosphor Bronze | Phosphor Bronze |
| Contact Mating Finish | Tin | Tin |
| Features | Side Stacking, Retention Latches (Non-Wire Side) | Side Stacking, Retention Latches (Non-Wire Side) |
| Insulation Height | 0.61 in | 0.61 in |
| Insulation Height | 15.49 mm | 15.49 mm |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Number of Levels | 1 | 1 |
| Number of Positions | 9 | 2 - 9 |
| Operating Temperature [Max] | 110 °C | 110 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Pitch [x] | 5 mm | 5 mm |
| Pitch [x] | 0.197 in | 0.197 in |
| Positions Per Level | 9 | 2 - 9 |
| Screw Size | M3 | M3 |
| Termination Style | Screw - Rising Cage Clamp | Screw - Rising Cage Clamp |
| Torque - Screw | 0.79 Nm | 0.79 Nm |
| Torque - Screw | 7 Lb-In | 7 Lb-In |
| Type | Plug, Female Sockets | Plug, Female Sockets |
| Voltage - UL | 300 V | 300 V |
| Wire Gauge or Range - AWG [Max] | 30 AWG | 30 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG | 12 AWG |
| Wire Gauge or Range - mm˛ | - | 3 mm˛ |
| Wire Gauge or Range - mm˛ | - | 0.05 mm˛ |
| Wire Gauge or Range - mm² [Max] | 3 mm² | 3 mm² |
| Wire Gauge or Range - mm² [Min] | 0.05 mm² | 0.05 mm² |
| Wire Strip Length [Max] | 7.5 mm | 7.5 mm |
| Wire Strip Length [Min] | 6 mm | 6 mm |
796696 Series
TERM BLOCK PLUG 9POS STR 5MM
| Part | Contact Material | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Contact Mating Finish | Material Flammability Rating | Number of Positions | Features | Pitch [x] | Pitch [x] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Termination Style | Wire Strip Length [Max] | Wire Strip Length [Min] | Insulation Height | Insulation Height | Number of Levels | Voltage - UL | Color | Torque - Screw | Torque - Screw | Positions Per Level | Screw Size | Type | Mounting Type | Wire Gauge or Range - mm˛ [Max] | Wire Gauge or Range - mm˛ [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 796696-9 | Phosphor Bronze | 30 AWG | 12 AWG | -40 °C | 110 °C | Tin | UL94 V-0 | 9 | Retention Latches (Non-Wire Side), Side Stacking | 5 mm | 0.197 in | 0.05 mm² | 3 mm² | Screw - Rising Cage Clamp | 7.5 mm | 6 mm | 0.61 in | 15.49 mm | 1 | 300 V | Blue | 0.79 Nm | 7 Lb-In | 9 | M3 | Plug, Female Sockets | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 796696-2 | Phosphor Bronze | 30 AWG | 12 AWG | -40 °C | 110 °C | Tin | UL94 V-0 | 2 | Retention Latches (Non-Wire Side), Side Stacking | 5 mm | 0.197 in | 0.05 mm² | 3 mm² | Screw - Rising Cage Clamp | 7.5 mm | 6 mm | 0.61 in | 15.49 mm | 1 | 300 V | Blue | 0.79 Nm | 7 Lb-In | 2 | M3 | Plug, Female Sockets | Free Hanging (In-Line) | ||
TE Connectivity AMP Connectors 796696-7 | Phosphor Bronze | 30 AWG | 12 AWG | -40 °C | 110 °C | Tin | UL94 V-0 | 7 | Retention Latches (Non-Wire Side), Side Stacking | 5 mm | 0.197 in | Screw - Rising Cage Clamp | 7.5 mm | 6 mm | 0.61 in | 15.49 mm | 1 | 300 V | Blue | 0.79 Nm | 7 Lb-In | 7 | M3 | Plug, Female Sockets | Free Hanging (In-Line) | 3 mm˛ | 0.05 mm˛ | ||
TE Connectivity AMP Connectors 796696-8 | Phosphor Bronze | 30 AWG | 12 AWG | -40 °C | 110 °C | Tin | UL94 V-0 | 8 | Retention Latches (Non-Wire Side), Side Stacking | 5 mm | 0.197 in | Screw - Rising Cage Clamp | 7.5 mm | 6 mm | 0.61 in | 15.49 mm | 1 | 300 V | Blue | 0.79 Nm | 7 Lb-In | 8 | M3 | Plug, Female Sockets | Free Hanging (In-Line) | 3 mm˛ | 0.05 mm˛ | ||
TE Connectivity AMP Connectors 796696-6 | Phosphor Bronze | 30 AWG | 12 AWG | -40 °C | 110 °C | Tin | UL94 V-0 | 6 | Retention Latches (Non-Wire Side), Side Stacking | 5 mm | 0.197 in | 0.05 mm² | 3 mm² | Screw - Rising Cage Clamp | 7.5 mm | 6 mm | 0.61 in | 15.49 mm | 1 | 300 V | Blue | 0.79 Nm | 7 Lb-In | 6 | M3 | Plug, Female Sockets | Free Hanging (In-Line) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 800 | $ 5.96 | |
Description
General part information
796696 Series
9 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)
