796696-8

Active

TE Connectivity AMP Connectors

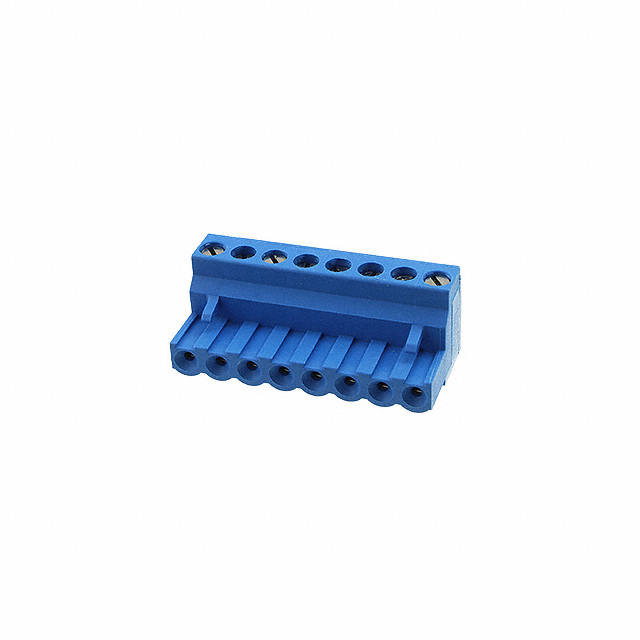

TERM BLOCK PLUG 8POS STR 5MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

796696-8

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 8POS STR 5MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	800	$ 5.48

Description

General part information

796696 Series

8 Position Terminal Block Plug, Female Sockets 0.197" (5.00mm) 180° Free Hanging (In-Line)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796696-8	796696 Series

Color	Blue	Blue
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin
Features	Side Stacking, Retention Latches (Non-Wire Side)	Side Stacking, Retention Latches (Non-Wire Side)
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	8	2 - 9
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	5 mm	5 mm
Pitch [x]	0.197 in	0.197 in
Positions Per Level	8	2 - 9
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	3 mm˛	3 mm˛
Wire Gauge or Range - mm˛ [Min]	0.05 mm˛	0.05 mm˛
Wire Gauge or Range - mm²	-	0.05 mm²
Wire Gauge or Range - mm²	-	3 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796696 Series

TERM BLOCK PLUG 9POS STR 5MM

Part	Contact Material	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Mating Finish	Material Flammability Rating	Number of Positions	Features	Pitch [x]	Pitch [x]	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Termination Style	Wire Strip Length [Max]	Wire Strip Length [Min]	Insulation Height	Insulation Height	Number of Levels	Voltage - UL	Color	Torque - Screw	Torque - Screw	Positions Per Level	Screw Size	Type	Mounting Type	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 796696-9	Phosphor Bronze	30 AWG	12 AWG	-40 °C	110 °C	Tin	UL94 V-0	9	Retention Latches (Non-Wire Side), Side Stacking	5 mm	0.197 in	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	7.5 mm	6 mm	0.61 in	15.49 mm	1	300 V	Blue	0.79 Nm	7 Lb-In	9	M3	Plug, Female Sockets	Free Hanging (In-Line)
TE Connectivity AMP Connectors 796696-2	Phosphor Bronze	30 AWG	12 AWG	-40 °C	110 °C	Tin	UL94 V-0	2	Retention Latches (Non-Wire Side), Side Stacking	5 mm	0.197 in	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	7.5 mm	6 mm	0.61 in	15.49 mm	1	300 V	Blue	0.79 Nm	7 Lb-In	2	M3	Plug, Female Sockets	Free Hanging (In-Line)
TE Connectivity AMP Connectors 796696-7	Phosphor Bronze	30 AWG	12 AWG	-40 °C	110 °C	Tin	UL94 V-0	7	Retention Latches (Non-Wire Side), Side Stacking	5 mm	0.197 in			Screw - Rising Cage Clamp	7.5 mm	6 mm	0.61 in	15.49 mm	1	300 V	Blue	0.79 Nm	7 Lb-In	7	M3	Plug, Female Sockets	Free Hanging (In-Line)	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796696-8	Phosphor Bronze	30 AWG	12 AWG	-40 °C	110 °C	Tin	UL94 V-0	8	Retention Latches (Non-Wire Side), Side Stacking	5 mm	0.197 in			Screw - Rising Cage Clamp	7.5 mm	6 mm	0.61 in	15.49 mm	1	300 V	Blue	0.79 Nm	7 Lb-In	8	M3	Plug, Female Sockets	Free Hanging (In-Line)	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 796696-6	Phosphor Bronze	30 AWG	12 AWG	-40 °C	110 °C	Tin	UL94 V-0	6	Retention Latches (Non-Wire Side), Side Stacking	5 mm	0.197 in	0.05 mm²	3 mm²	Screw - Rising Cage Clamp	7.5 mm	6 mm	0.61 in	15.49 mm	1	300 V	Blue	0.79 Nm	7 Lb-In	6	M3	Plug, Female Sockets	Free Hanging (In-Line)
