4811-2X36YD

Active

3M (TC)

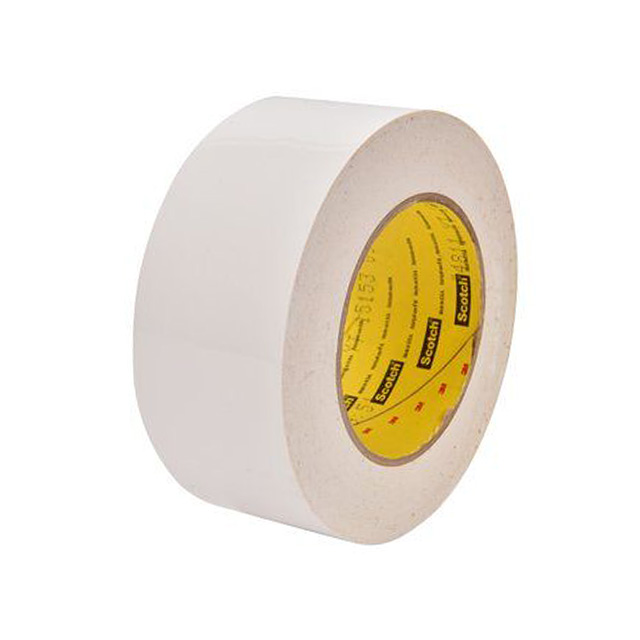

TAPE SEALING WHITE 2"X36YDS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4811-2X36YD

Active

3M (TC)

TAPE SEALING WHITE 2"X36YDS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	4811-2X36YD

Adhesive	Rubber
Color	White
Length	36 yd
Length	32.9 m
Length	108 ft
Shelf Life	18 Months
Shelf Life Start	Date of Manufacture
Tape Type	Sealing
Temperature Range	170 °F
Temperature Range	77 °C
Thickness	9.5 mils
Thickness	0.0095 in
Thickness	0.241 mm
Thickness - Adhesive	2 mils
Thickness - Adhesive	0.051 mm
Thickness - Adhesive [x]	0.002 "
Thickness - Backing, Carrier	0.191 mm
Thickness - Backing, Carrier	7.5 mils
Thickness - Backing, Carrier	0.0075 in
Usage	Sealing
Width [y]	2 "
Width [y]	50.8 mm

4811 Series

Part	Color	Temperature Range	Temperature Range	Length	Length	Length	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Thickness - Backing, Carrier	Storage/Refrigeration Temperature [Min]	Storage/Refrigeration Temperature [Max]	Adhesive	Width [y]	Width [y]	Thickness	Thickness	Thickness	Thickness - Adhesive	Thickness - Adhesive	Thickness - Adhesive [x]	Tape Type	Shelf Life	Shelf Life Start	Usage	Width [x]	Width [x]
3M (TC) 4811-2-5	White	170 °F	77 °C	4.6 m	15 ft	5 yd	0.191 mm	7.5 mils	0.0075 in	16 °C 60 °F	27 °C 80 °F	Rubber	2 "	50.8 mm	9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing
3M (TC) 4811-2X36YD	White	170 °F	77 °C	32.9 m	108 ft	36 yd	0.191 mm	7.5 mils	0.0075 in			Rubber	2 "	50.8 mm	9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing
3M (TC) 4811-6-5	White	170 °F	77 °C	4.6 m	15 ft	5 yd	0.191 mm	7.5 mils	0.0075 in	16 °C 60 °F	27 °C 80 °F	Rubber			9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing	6 in	152.4 mm
3M (TC) 4811-3X36YD	White	170 °F	77 °C	32.9 m	108 ft	36 yd	0.191 mm	7.5 mils	0.0075 in			Rubber			9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing	3 in	76.2 mm
3M (TC) 4811-4"X36YD	White	170 °F	77 °C	32.9 m	108 ft	36 yd	0.191 mm	7.5 mils	0.0075 in			Rubber			9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing	4 "	101.6 mm
3M (TC) 4811-4-5	White	170 °F	77 °C	4.6 m	15 ft	5 yd	0.191 mm	7.5 mils	0.0075 in	16 °C 60 °F	27 °C 80 °F	Rubber			9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing	4 "	101.6 mm
3M (TC) 4811-1-5	White	170 °F	77 °C	4.6 m	15 ft	5 yd	0.191 mm	7.5 mils	0.0075 in	16 °C 60 °F	27 °C 80 °F	Rubber			9.5 mils	0.0095 in	0.241 mm	2 mils	0.051 mm	0.002 "	Sealing	18 Months	Date of Manufacture	Sealing	1 in	25.4 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	24	$ 77.92

Description

General part information

4811 Series

Sealing Tape Rubber Adhesive White 2.00" (50.80mm) X 108' (32.9m) 36 yds
