LPCGC151M

Active

SCS

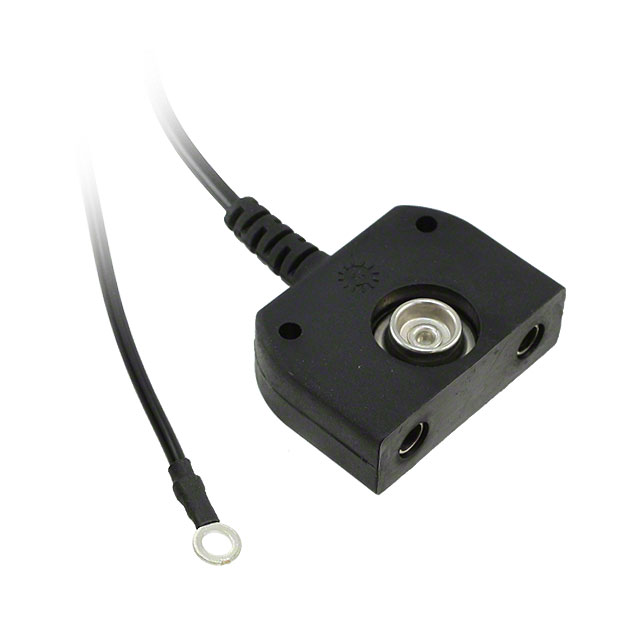

ESD GROUNDING CORD, BLACK, 15FT, 1MOHM, 10MM STUD SIZE

Search across all available documentation for this part.

Active

SCS

ESD GROUNDING CORD, BLACK, 15FT, 1MOHM, 10MM STUD SIZE

Technical Specifications

Parameters and characteristics for this part

Specification	LPCGC151M

Color	Black
Cord Length	15 ft
Cord Length	4.57 m
Cord Termination	#10 Ring Terminal, 10mm Snap Stud, Banana Jack (2)
Number of Conductors	1
Resistance	1 MOhms
Type	Cord (For Mats, Wrist Straps)

ESD GROUNDING CORD, BLACK, 15FT, 1MOHM, 10MM STUD SIZE

Part	Number of Conductors	Cord Termination	Cord Length	Cord Length	Color	Resistance	Type
SCS LPCGC151M	1	#10 Ring Terminal, 10mm Snap Stud, Banana Jack (2)	15 ft	4.57 m	Black	1 MOhms	Cord (For Mats, Wrist Straps)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 15.81
Newark	Each	1	$ 15.81

General part information

Cord (For Mats, Wrist Straps) 15' (4.57m) 1 MOhms Black
