Q-26027000M024i

Active

Amphenol Custom Cable

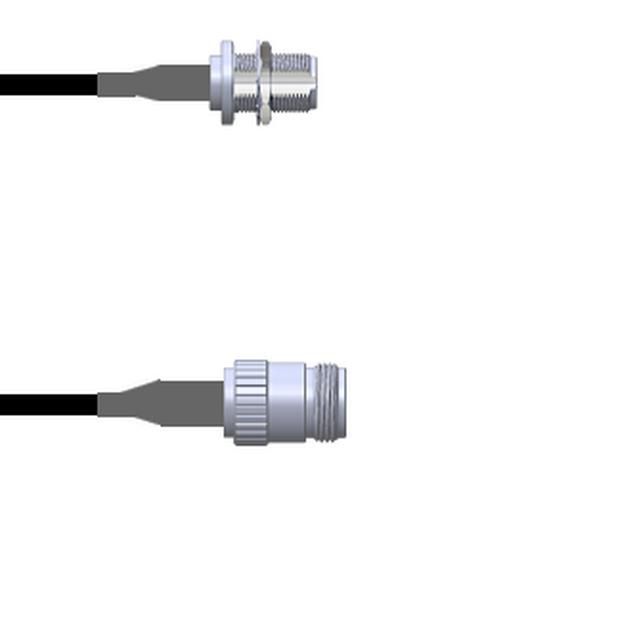

CBL ASSY NTYPE JACK TO JACK 24"

Deep-Dive with AI

Search across all available documentation for this part.

Q-26027000M024i

Active

Amphenol Custom Cable

CBL ASSY NTYPE JACK TO JACK 24"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-26027000M024i

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	LMR 240
Color	Black
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length	24 "
Length	609.6 mm
Overall Impedance	50 Ohms
Style	N-Type to N-Type

Q-260270 Series

Part	2nd Connector Mounting Type	Cable Type	2nd Contact Gender	1st Connector	Color	Length [x]	Length [x]	2nd Connector	Style	1st Connector Mounting Feature	Frequency - Max [Max]	1st Connector Mounting Type	1st Contact Gender	Features	Overall Impedance	Length	Length	Length
Amphenol Custom Cable Q-26027000M018i	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black	457.2 mm	457.2 mm	N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms
Amphenol Custom Cable Q-26027000M1.5M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	59.1 in	4.9 ft	1.5 m
Amphenol Custom Cable Q-26027000M.75M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	29.53 "		750 mm
Amphenol Custom Cable Q-26027000M048i	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	48 in	4 ft	1200 mm
Amphenol Custom Cable Q-26027000M001M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	39.4 in	3.3 ft	1 m
Amphenol Custom Cable Q-26027000M024i	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	24 "		609.6 mm
Amphenol Custom Cable Q-26027000M0.5M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	19.69 "		50 cm
Amphenol Custom Cable Q-26027000M002M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	78.7 in	6.6 ft	2 m
Amphenol Custom Cable Q-26027000M003M	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	118.1 in	9.8 '	3 m
Amphenol Custom Cable Q-26027000M012i	Free Hanging (In-Line)	LMR 240	Female	N-Type Jack	Black			N-Type Jack	N-Type to N-Type	Bulkhead - Front Side Nut	6000 MHz	Panel Mount	Female	Shielded	50 Ohms	12 "		304.8 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 143.72
		25	$ 141.00
		50	$ 138.28
		100	$ 135.56
		250	$ 132.85

Description

General part information

Q-260270 Series

Cable Assembly Coaxial N-Type to N-Type LMR 240 24.00" (609.60mm)

Documents

Technical documentation and resources

No documents available
