Q-2504O000H002M

Active

Amphenol Custom Cable

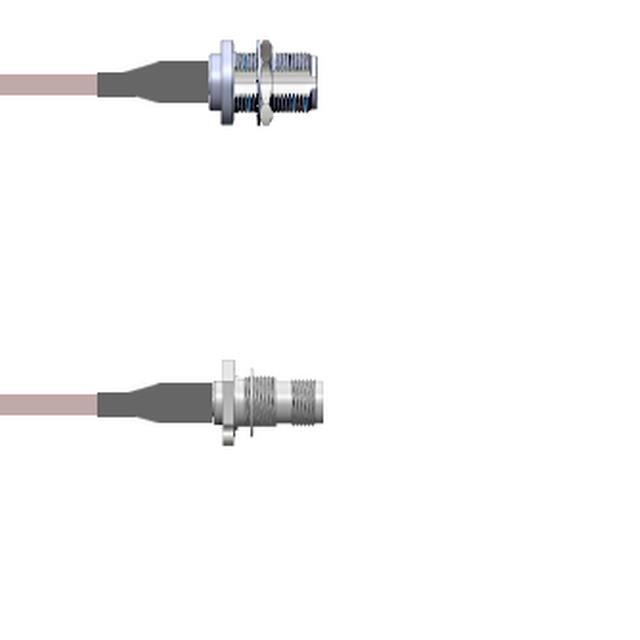

CBL ASSY NTYPE-TNC JCK-JCK 6.6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-2504O000H002M

Active

Amphenol Custom Cable

CBL ASSY NTYPE-TNC JCK-JCK 6.6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-2504O000H002M

1st Connector	N-Type Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	TNC Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	6.6 ft
Length	78.7 in
Length	2 m
Overall Impedance	50 Ohms

Q-2504O0 Series

Part	2nd Connector	1st Connector Mounting Type	Features	1st Connector	Cable Type	2nd Connector Mounting Feature	Frequency - Max [Max]	Color	Length	Length	Length	2nd Contact Gender	2nd Connector Mounting Type	1st Contact Gender	Overall Impedance	1st Connector Mounting Feature	Length [x]	Length [x]
Amphenol Custom Cable Q-2504O000H001M	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	1 m	3.3 ft	39.4 in	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H060i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	1.5 m	5 ft	5 '	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H.75M	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	750 mm		29.53 "	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H108i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	2.7 m	9 ft	108 in	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H012i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	304.8 mm		12 "	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H009i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	228.6 mm		9 "	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H036i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	91.44 cm		36 in	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H018i	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper				Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut	457.2 mm	457.2 mm
Amphenol Custom Cable Q-2504O000H002M	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	2 m	6.6 ft	78.7 in	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut
Amphenol Custom Cable Q-2504O000H0.5M	TNC Jack	Panel Mount	Shielded	N-Type Jack	RG-142	Bulkhead - Front Side Nut	11 GHz	Copper	50 cm		19.69 "	Female	Panel Mount	Female	50 Ohms	Bulkhead - Front Side Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 134.02
		25	$ 124.74
		50	$ 115.47
		100	$ 107.52
		250	$ 100.89

Description

General part information

Q-2504O0 Series

Cable Assembly Coaxial N-Type to TNC RG-142 78.7" (2.0m) 6.6'

Documents

Technical documentation and resources

No documents available
