ISB0105S15
ActiveXP POWER

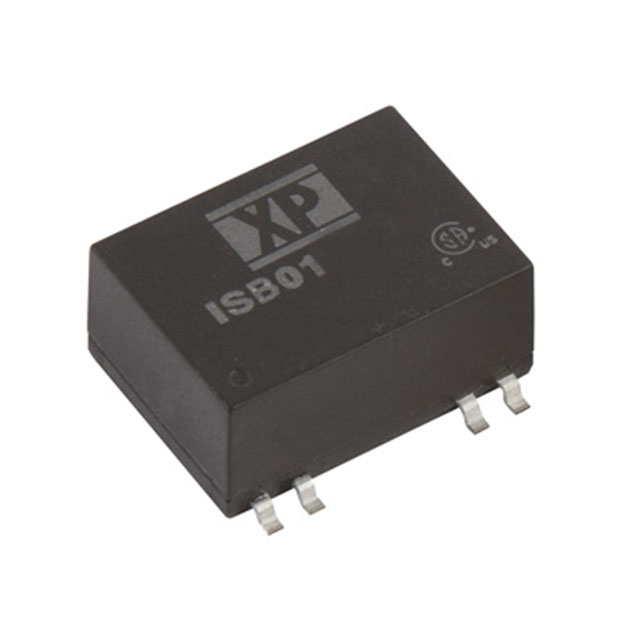

ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 2:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Search across all available documentation for this part.
ISB0105S15
ActiveXP POWER
ISOLATED SURFACE MOUNT DC/DC CONVERTER, ITE, DIP, 2:1, 1 W, 1 OUTPUT, 15 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ISB0105S15 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Enable, Active Floating |
| Current - Output (Max) [Max] | 67 mA |
| Efficiency | 81 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 203 °F |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 14-SMD Module, 7 Leads |
| Size / Dimension [x] | 0.74 in |
| Size / Dimension [x] | 18.9 mm |
| Size / Dimension [y] | 13.7 mm |
| Size / Dimension [y] | 0.54 " |
| Size / Dimension [z] | 8.5 mm |
| Size / Dimension [z] | 0.33 in |
| Standard Number | 62368-1 |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 9 V |
| Voltage - Input (Min) [Min] | 4.5 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
ISB0105 Series
The ISB01 series is a 1W regulated single and dual output DC to DC converter with a 2:1 input range in a compact SMD package. It has input to output isolation of 1500VDC and features continues short circuit protection with auto recovery. It is approved to IEC60950-1 and UL/cUL60950-1 standards.
