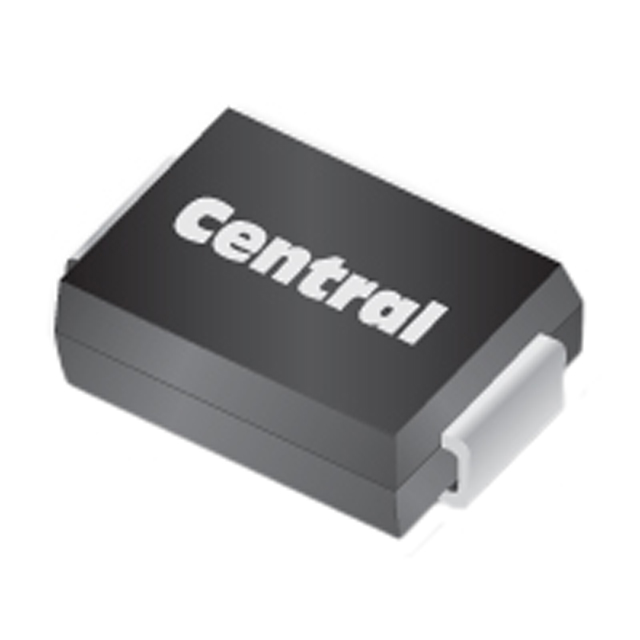

1.5SMC7.5CA TR13 PBFREE

Active

Central Semiconductor Corp

TVS DIODE 6.4VWM 11.3VC SMC

Search across all available documentation for this part.

Active

Central Semiconductor Corp

TVS DIODE 6.4VWM 11.3VC SMC

Technical Specifications

Parameters and characteristics for this part

Specification	1.5SMC7.5CA TR13 PBFREE

Applications	General Purpose
Bidirectional Channels [custom]	1
Current - Peak Pulse (10/1000µs)	132 A
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMC, DO-214AB
Power - Peak Pulse	1.5 kW
Power - Peak Pulse	1500 W
Power Line Protection	False
Supplier Device Package	SMC
Type	Zener
Voltage - Breakdown (Min) [Min]	7.13 V
Voltage - Clamping (Max) @ Ipp [Max]	11.3 V
Voltage - Reverse Standoff (Typ)	6.4 V

TVS DIODE 6.4VWM 11.3VC SMC

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Clamping (Max) @ Ipp [Max]	Power - Peak Pulse	Power - Peak Pulse	Applications	Bidirectional Channels [custom]	Power Line Protection	Supplier Device Package	Type	Voltage - Reverse Standoff (Typ)	Mounting Type	Current - Peak Pulse (10/1000µs)	Voltage - Breakdown (Min) [Min]
Central Semiconductor Corp 1.5SMC7.5CA TR13 PBFREE	DO-214AB, SMC	150 °C	-65 °C	11.3 V	1.5 kW	1500 W	General Purpose	1		SMC	Zener	6.4 V	Surface Mount	132 A	7.13 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

11.3V Clamp 132A Ipp Tvs Diode Surface Mount SMC
