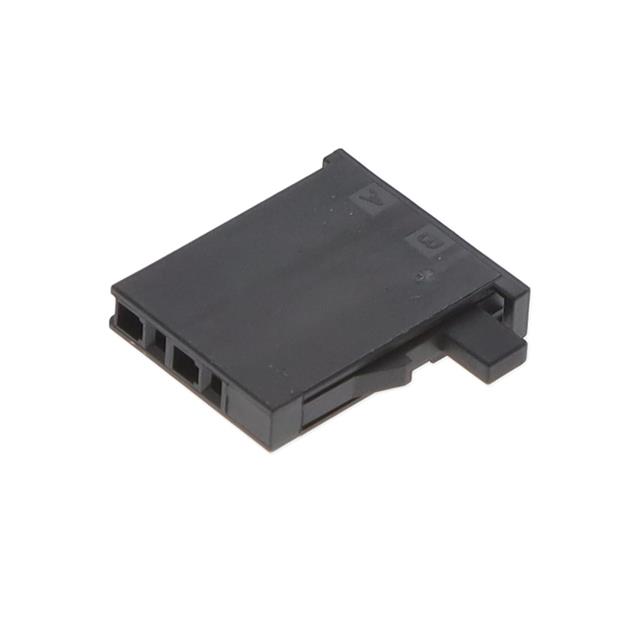

J25MF-02V-K
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
J25MF-02V-K
ActiveJST Sales America Inc.
CONN RCPT HSG 2POS 4.00MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | J25MF-02V-K |
|---|---|
| Color | Black |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 4 mm |
| Pitch [x] | 0.157 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.91 | |
| 10 | $ 0.77 | |||
| 25 | $ 0.74 | |||
| 50 | $ 0.72 | |||
| 100 | $ 0.69 | |||
| 250 | $ 0.63 | |||
| 800 | $ 0.55 | |||
| 1600 | $ 0.47 | |||
| 3200 | $ 0.46 | |||
Description
General part information
J25MF-02 Series
2 Rectangular Connectors - Housings Receptacle Black 0.157" (4.00mm)
Documents
Technical documentation and resources
