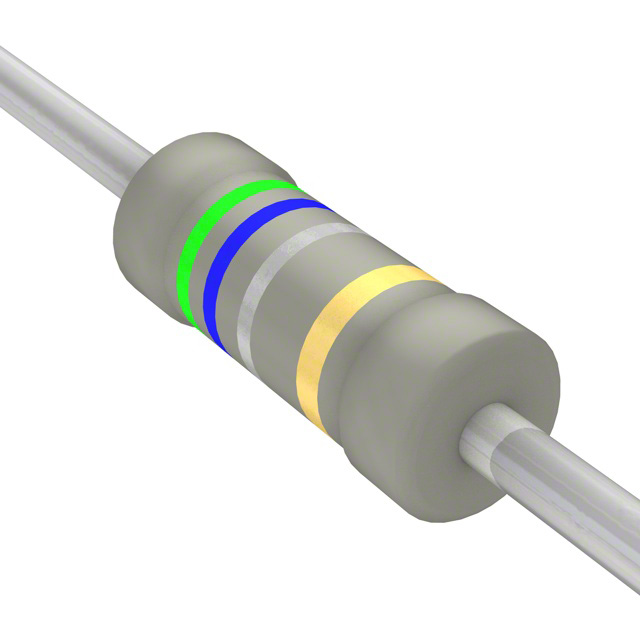

LR1LJR56

Active

TE Connectivity Passive Product

RES 0.56 OHM 5% 1/2W AXIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 0.56 OHM 5% 1/2W AXIAL

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Terminations	Size / Dimension [diameter]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [diameter]	Tolerance	Temperature Coefficient	Composition	Package / Case	Power (Watts)	Power (Watts)	Resistance
TE Connectivity Passive Product LR1LJR56	Axial	155 °C	-55 °C	2	2.3 mm	6.2 mm	0.244 "	0.091 "	5 %	200 ppm/°C	Metal Film	Axial	0.5 W	0.5 W	0.56 Ohms
TE Connectivity Passive Product LR1LJR22	Axial	155 °C	-55 °C	2	2.3 mm	6.2 mm	0.244 "	0.091 "	5 %	200 ppm/°C	Metal Film	Axial	0.5 W	0.5 W	220 mOhms
TE Connectivity Passive Product LR1LJR15	Axial	155 °C	-55 °C	2	2.3 mm	6.2 mm	0.244 "	0.091 "	5 %	200 ppm/°C	Metal Film	Axial	0.5 W	0.5 W	0.15 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Box (TB)	12000	$ 0.07

General part information

560 mOhms ±5% 0.5W, 1/2W Through Hole Resistor Axial Metal Film
