EDAC Inc.

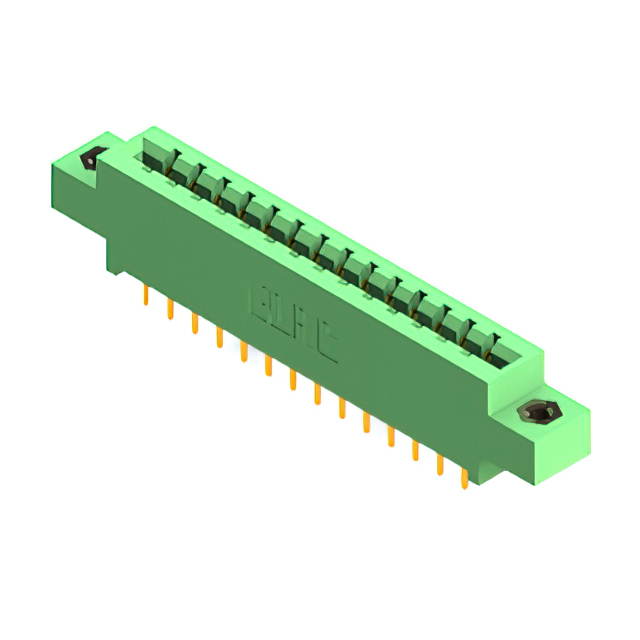

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, GREEN INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

837-028-521-808

Active

EDAC Inc.

CARD EDGE CONNECTOR, 28 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, 0.156 INCH PITCH, SOLDER TERMINAL, #4-40UNC, GREEN INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	837-028-521-808

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	14
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

837-028 Series

...

Part	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Gender	Contact Finish	Pitch [x]	Pitch [x]	Contact Type	Contact Material	Color	Number of Rows	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness	Contact Finish Thickness	Termination	Termination Rows	Mounting Type	Number of Positions	Read Out	Flange Feature	Material - Insulation	Number of Positions/Bay/Row [custom]	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 837-028-559-608	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	1	Through Hole Right Angle	28	Single	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	28
EDAC Inc. 837-028-540-112	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Wire Wrap	1	Through Hole	28	Single	Flush Mount Side Opening Unthreaded	Diallyl Phthalate (DAP)	28	3.25 mm	0.128 "
EDAC Inc. 837-028-559-104	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	1	Through Hole Right Angle	28	Single	Flush Mount Top Opening Unthreaded	Diallyl Phthalate (DAP)	28	3.96 mm	0.156 in
EDAC Inc. 837-028-521-808	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	2	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	2	Through Hole	28	Dual	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	14
EDAC Inc. 837-028-524-807	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	2	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	2	Through Hole	28	Dual	M3 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	14
EDAC Inc. 837-028-500-107	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Solder Eyelet(s)	1	Through Hole	28	Single	Flush Mount M3 Threaded Insert Top Opening	Diallyl Phthalate (DAP)	28
EDAC Inc. 837-028-559-101	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	1	Through Hole Right Angle	28	Single		Diallyl Phthalate (DAP)	28
EDAC Inc. 837-028-520-212	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	2	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	2	Through Hole	28	Dual	Flush Mount Side Opening Unthreaded	Diallyl Phthalate (DAP)	14	3.25 mm	0.128 "
EDAC Inc. 837-028-542-608	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	1	125 °C	-40 °C	10 Áin	0.25 Ám	Wire Wrap	1	Through Hole	28	Single	4-40 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	28
EDAC Inc. 837-028-559-807	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Female	Gold	0.156 in	3.96 mm	Cantilever	Copper Alloy	Green	2	125 °C	-40 °C	10 Áin	0.25 Ám	Solder	2	Through Hole Right Angle	28	Dual	M3 Threaded Insert Top Mount Opening	Diallyl Phthalate (DAP)	14
