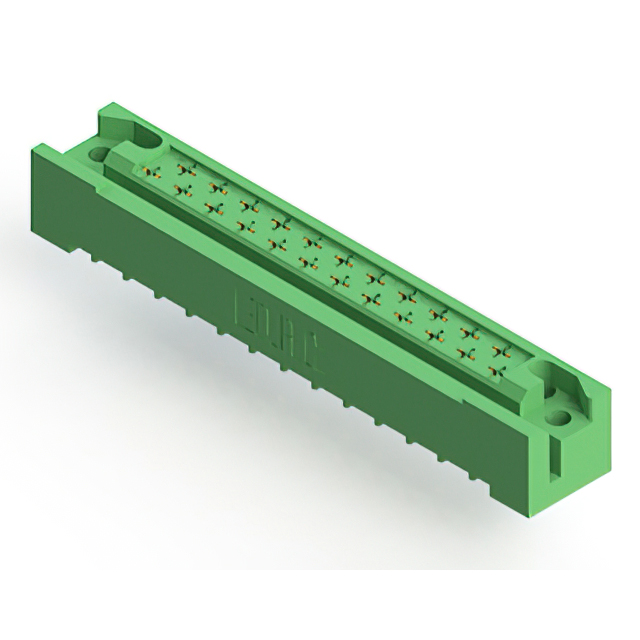

424-023-523-112

Active

EDAC Inc.

CONN EDGE DL FMALE 23P 0.200 2PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

424-023-523-112

Active

EDAC Inc.

CONN EDGE DL FMALE 23P 0.200 2PC

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	424-023-523-112

Card Thickness	0.062 in
Card Thickness	1.57 mm
Card Type	Non Specified - Dual Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Flange Feature	Flush Mount, Top Opening, Unthreaded
Flange Feature [diameter]	3.25 mm
Flange Feature [diameter]	0.128 "
Gender	Female
Material - Insulation	Diallyl Phthalate (DAP)
Mounting Type	Through Hole, Panel Mount
Number of Positions	23
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.2 in
Pitch [x]	5.08 mm
Termination	Solder
Termination Rows	2

424-023 Series

Part	Contact Material	Card Thickness	Card Thickness	Termination	Number of Rows	Number of Positions	Color	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature [diameter]	Flange Feature [diameter]	Flange Feature	Mounting Type	Card Type	Material - Insulation	Pitch [x]	Pitch [x]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Termination Rows
EDAC Inc. 424-023-502-122	Copper Alloy	0.093 in	2.36 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-540-112	Copper Alloy	0.062 in	1.57 mm	Wire Wrap	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-523-112	Copper Alloy	0.062 in	1.57 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-524-122	Copper Alloy	0.093 in	2.36 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-541-112	Copper Alloy	0.062 in	1.57 mm	Wire Wrap	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-525-122	Copper Alloy	0.093 in	2.36 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-500-122	Copper Alloy	0.093 in	2.36 mm	Solder Eyelet(s)	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-524-112	Copper Alloy	0.062 in	1.57 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-542-122	Copper Alloy	0.093 in	2.36 mm	Wire Wrap	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2
EDAC Inc. 424-023-522-122	Copper Alloy	0.093 in	2.36 mm	Solder	2	23	Green	Female	125 °C	-65 ░C	3.25 mm	0.128 "	Flush Mount Top Opening Unthreaded	Panel Mount Through Hole	Non Specified - Dual Edge	Diallyl Phthalate (DAP)	0.2 in	5.08 mm	10 Áin	0.25 Ám	Gold	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	25	$ 24.34

Description

General part information

424-023 Series

23 Position Female Connector Non Specified - Dual Edge Gold 0.200" (5.08mm) Green
