EN2C5M26G1

Active

Switchcraft Inc.

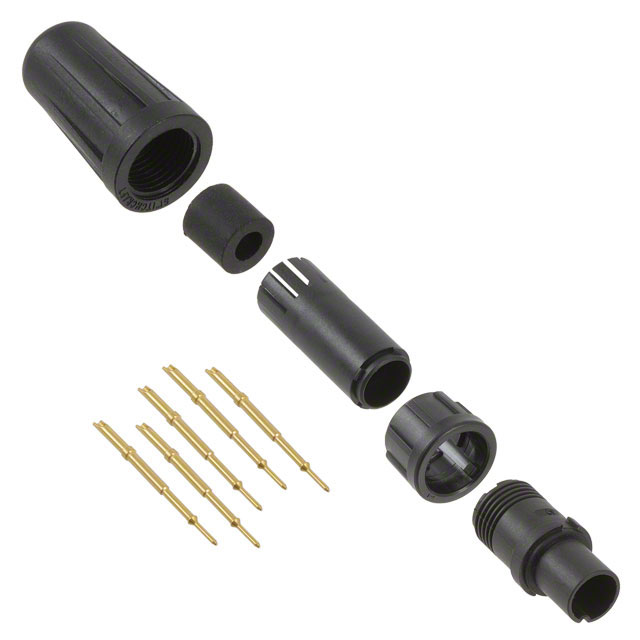

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN2C5M26G1

Active

Switchcraft Inc.

CONN PLUG MALE 5POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.53
		10	$ 6.55
		25	$ 5.92
		50	$ 5.64

Description

General part information

EN2C5M Series

5 Position Circular Connector Plug, Male Pins Crimp or Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN2C5M26G1	EN2C5M Series

Applications	Marine, Communication Systems, Medical, Industrial	Marine, Communication Systems, Medical, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	0.18 in
Cable Opening	-	0.22 in
Cable Opening	-	4.57 mm
Cable Opening	-	5.59 mm
Cable Opening	-	4.57 mm
Cable Opening	-	3.56 mm
Cable Opening	-	0.14 in
Cable Opening	-	0.18 in
Cable Opening [custom]	3.56 mm, 2.54 mm	2.54 - 3.56 mm
Cable Opening [custom]	0.14 in, 0.1 in	0.1 - 0.14 in
Color	Black	Black
Connector Type	Plug, Male Pins	Plug, Male Pins
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Coupling Nut, Backshell	Coupling Nut, Backshell, Winged
Ingress Protection	IP68, IP66, IP67	IP68, IP66, IP67
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	Crimp, Solder Cup	Crimp, Solder Cup
Voltage Rating	125 VAC	125 VAC

EN2C5M Series

CONN PLUG MALE 5POS GOLD CRIMP

Part	Features	Insert Material	Orientation	Shielding	Contact Finish - Mating	Fastening Type	Backshell Material, Plating	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Material Flammability Rating	Connector Type	Contact Material	Color	Voltage Rating	Mounting Type	Ingress Protection	Applications	Primary Material	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [custom]	Cable Opening [custom]
Switchcraft Inc. EN2C5M26G3W	Backshell, Coupling Nut, Winged	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic
Switchcraft Inc. EN2C5M26G3	Backshell, Coupling Nut	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic	0.18 in	0.22 in	4.57 mm	5.59 mm	Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic
Switchcraft Inc. EN2C5M26G2	Backshell, Coupling Nut	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C5M26G1W	Backshell, Coupling Nut, Winged	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic					2.54 mm, 3.56 mm	0.1 in, 0.14 in
Switchcraft Inc. EN2C5M26DCW	Backshell, Coupling Nut, Winged	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic
Switchcraft Inc. EN2C5M26G2W	Backshell, Coupling Nut, Winged	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic	4.57 mm	3.56 mm	0.14 in	0.18 in
Switchcraft Inc. EN2C5M26DC	Backshell, Coupling Nut	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic
Switchcraft Inc. EN2C5M26G1	Backshell, Coupling Nut	Elastomer	Keyed	Unshielded	Gold	Bayonet Lock	Thermoplastic					Crimp, Solder Cup	85 °C	-40 °C	UL94 V-0	Male Pins, Plug	Copper Alloy	Black	125 VAC	Free Hanging (In-Line)	IP66, IP67, IP68	Communication Systems, Industrial, Marine, Medical	Plastic					2.54 mm, 3.56 mm	0.1 in, 0.14 in
