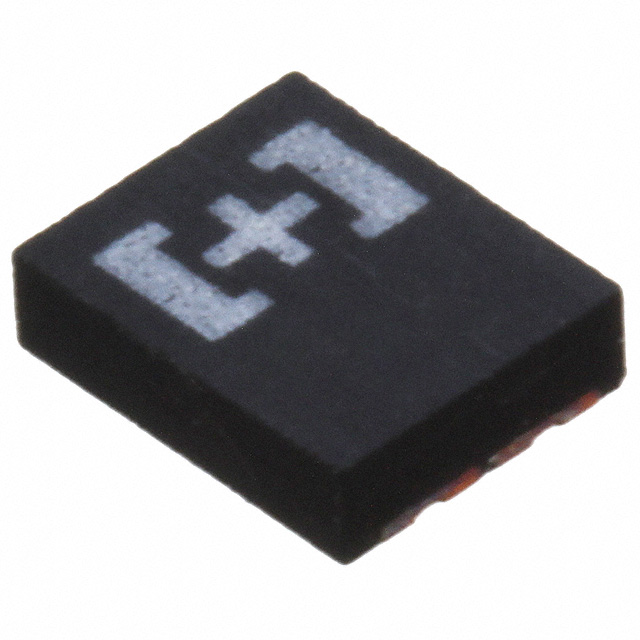

6TPU150MBI

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 150UF 6.3V 1411

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

CAP TANT POLY 150UF 6.3V 1411

Technical Specifications

Parameters and characteristics for this part

Specification	6TPU150MBI

Capacitance	150 µF
ESR (Equivalent Series Resistance)	100 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Lifetime @ Temp.	1000 Hrs
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	1411
Package / Case	3528 Metric
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Lifetime @ Temp.	Capacitance	Features	ESR (Equivalent Series Resistance)	Voltage - Rated	Mounting Type	Type	Tolerance	Package / Case	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	Size / Dimension [y]	Size / Dimension [x]
Panasonic Industrial Automation Sales 6TPU33MSK	85 °C	-55 °C	1000 Hrs	33 ÁF	General Purpose	150 mOhm	6.3 V	Surface Mount	Molded	20 %
Panasonic Industrial Automation Sales 6TPU150MBI	85 °C	-55 °C	1000 Hrs	150 µF	General Purpose	100 mOhm	6.3 V	Surface Mount	Molded	20 %	1411	3528 Metric	0.039 "	1 mm	0.11 in	2.8 mm	0.138 "	3.5 mm
Panasonic Industrial Automation Sales 6TPU22MSI	85 °C	-55 °C	1000 Hrs	22 µF	General Purpose	150 mOhm	6.3 V	Surface Mount	Molded	20 %	0805		0.039 "	1 mm	0.049 in	1.25 mm	0.079 in	2 mm	S09
Panasonic Industrial Automation Sales 6TPU10MSI	85 °C	-55 °C	1000 Hrs	10 µF	General Purpose	250 mOhm	6.3 V	Surface Mount	Molded	20 %	0805		0.039 "	1 mm	0.049 in	1.25 mm	0.079 in	2 mm	S09
Panasonic Industrial Automation Sales 6TPU47MAI	85 °C	-55 °C	1000 Hrs	47 µF	General Purpose	150 mOhm	6.3 V	Surface Mount	Molded	20 %	1206 (3216 Metric)		0.039 "	1 mm		1.6 mm		3.2 mm	A09	0.063 in	0.126 "

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

150 µF Molded Tantalum Polymer Capacitor 6.3 V 1411 (3528 Metric) 100mOhm @ 100kHz
