858-22-006-10-011101

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 6POS PCB

Search across all available documentation for this part.

Active

Mill-Max Manufacturing Corp.

CONN SPRING PISTON 6POS PCB

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Material	Number of Contacts	Pitch [x]	Pitch [x]	Contact Finish	Connector Type	Number of Rows	Contact Finish Thickness	Contact Finish Thickness	Number of Contacts [custom]
Mill-Max Manufacturing Corp. 858-22-003-30-611101	Surface Mount	Copper Alloy	3	4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 858-22-004-30-011101	Surface Mount	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	4
Mill-Max Manufacturing Corp. 858-22-004-30-601101	Surface Mount	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	4
Mill-Max Manufacturing Corp. 858-22-003-30-601101	Surface Mount	Copper Alloy	3	4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 858-22-005-30-601101	Surface Mount	Copper Alloy	5	4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin
Mill-Max Manufacturing Corp. 858-22-006-10-011101	Through Hole	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	6
Mill-Max Manufacturing Corp. 858-22-004-30-611101	Surface Mount	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	4
Mill-Max Manufacturing Corp. 858-22-006-80-011101	Through Hole	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	6
Mill-Max Manufacturing Corp. 858-22-006-30-001101	Surface Mount	Copper Alloy		4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin	6
Mill-Max Manufacturing Corp. 858-22-003-10-011101	Through Hole	Copper Alloy	3	4 mm	0.157 in	Gold	Piston	1	0.51 µm	20 µin

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

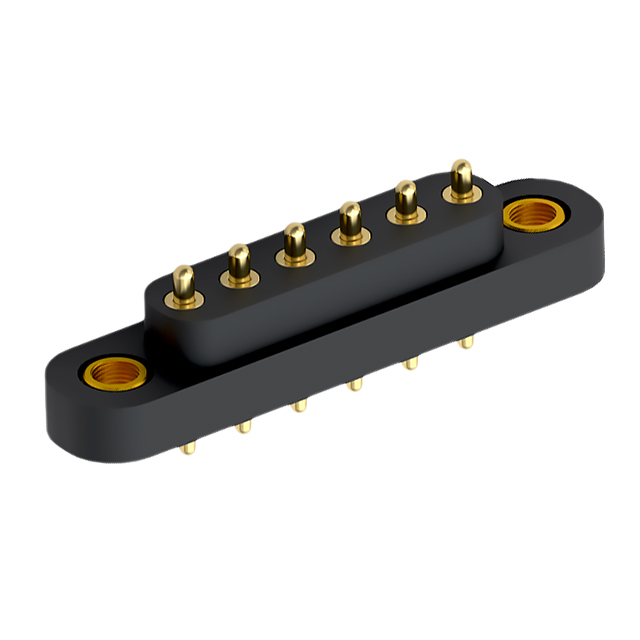

6 Position Spring Piston Connector Through Hole

Technical documentation and resources

No documents available
