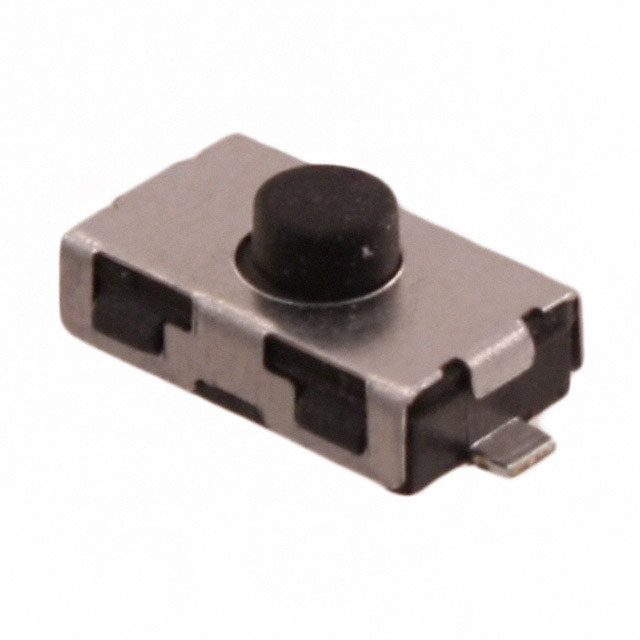

TL3310AF200QG

Obsolete

E-Switch

SWITCH TACTILE SPST-NC 0.05A 50V

Search across all available documentation for this part.

Obsolete

E-Switch

SWITCH TACTILE SPST-NC 0.05A 50V

Technical Specifications

Parameters and characteristics for this part

Specification	TL3310AF200QG

Actuator Height off PCB, Vertical [z]	2.5 mm
Actuator Material	Silicone Rubber
Actuator Orientation	Top Actuated
Actuator Type	Standard
Circuit	SPST-NC
Contact Rating @ Voltage	50 VDC, 0.05 A
Illumination	Non-Illuminated
Mounting Type	Surface Mount
Operating Force	200 gf
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline [x]	6 mm
Outline [y]	3.8 mm
Switch Function	On-Mom
Switch Travel	0.5 mm
Termination Style	Gull Wing

Part	Actuator Material	Operating Force	Mounting Type	Switch Function	Switch Travel	Actuator Type	Contact Rating @ Voltage	Outline [x]	Outline [y]	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Circuit	Termination Style	Illumination	Operating Temperature [Min]	Operating Temperature [Max]
E-Switch TL3310AF200QG	Silicone Rubber	200 gf	Surface Mount	On-Mom	0.5 mm	Standard	0.05 A 50 VDC	6 mm	3.8 mm	2.5 mm	Top Actuated	SPST-NC	Gull Wing	Non-Illuminated	-20 C	70 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Tactile Switch SPST-NC Top Actuated Surface Mount
