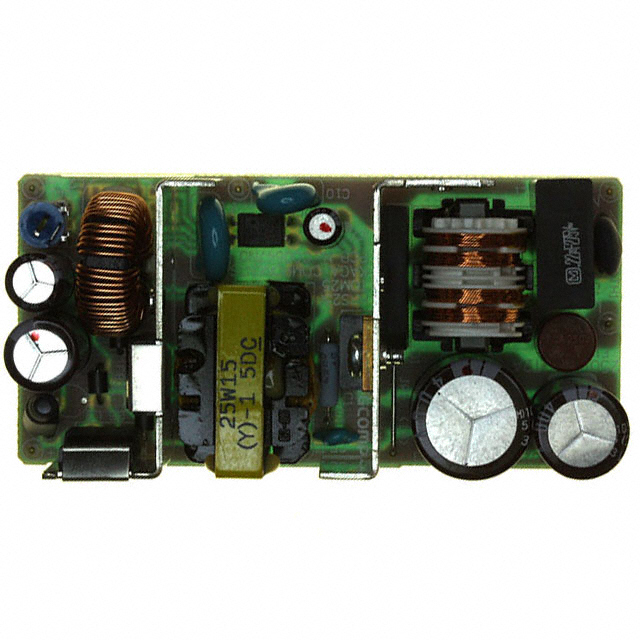

KRS25F-15

Obsolete

Volgen + Furuno

AC/DC CONVERTER 15V 25W

Search across all available documentation for this part.

Obsolete

Volgen + Furuno

AC/DC CONVERTER 15V 25W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 15V 1.7A 85 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	KRS25F-15	KRS25F Series

Applications	ITE (Commercial)	ITE (Commercial)
Approval Agency	IEC	IEC
Current - Output (Max) [Max]	1.7 A	1.7 - 6 A
Efficiency	80 %	69 - 80 %
Features	Adjustable Output, Universal Input	Adjustable Output, Universal Input
Load Regulation	100 mV	100 mV
Mounting Type	Through Hole	Through Hole
Number of Outputs	1	1
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Package / Case	5-DIP Module	5-DIP Module
Power (Watts)	25 W	25 W
Size / Dimension [x]	3.35 in	3.35 in
Size / Dimension [x]	85 mm	85 mm
Size / Dimension [y]	41 mm	41 mm
Size / Dimension [y]	1.61 "	1.61 "
Size / Dimension [z]	23 mm	23 mm
Size / Dimension [z]	0.91 in	0.91 in
Standard Number	60950-1	60950-1
Type	Open Frame	Open Frame
Voltage - Output 1	15 V	3.3 - 24 V
Weight	99.79 g	99.79 g
Weight	0.22 lb	0.22 lb

AC/DC CONVERTER 5V 25W

Part	Power (Watts)	Standard Number	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Weight	Weight	Approval Agency	Number of Outputs	Applications	Operating Temperature [Max]	Voltage - Output 1	Load Regulation	Type	Mounting Type	Efficiency	Features	Current - Output (Max) [Max]
Volgen + Furuno KRS25F-05	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	5 V	100 mV	Open Frame	Through Hole	74 %	Adjustable Output, Universal Input	5 A
Volgen + Furuno KRS25F-03	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	3.3 V	100 mV	Open Frame	Through Hole	69 %	Adjustable Output, Universal Input	6 A
Volgen + Furuno KRS25F-24	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	24 V	100 mV	Open Frame	Through Hole	80 %	Adjustable Output, Universal Input
Volgen + Furuno KRS25F-15	25 W	60950-1	5-DIP Module	23 mm	41 mm	3.35 in	1.61 "	0.91 in	85 mm	99.79 g	0.22 lb	IEC	1	ITE (Commercial)	70 °C	15 V	100 mV	Open Frame	Through Hole	80 %	Adjustable Output, Universal Input	1.7 A
