H3CCH-3406G

Active

Assmann WSW Components

IDC CBL - HHKC34H/AE34G/HHKC34H

Search across all available documentation for this part.

Active

Assmann WSW Components

IDC CBL - HHKC34H/AE34G/HHKC34H

Technical Specifications

Parameters and characteristics for this part

Part	Cable Termination	Number of Rows	Connector Type	Shielding	Contact Finish Thickness	Color	Number of Positions	Contact Finish	Length [x]	Length [x]	Features	Pitch - Cable	Pitch - Cable	Pitch - Connector	Pitch - Connector	Length	Length	Length
Assmann WSW Components H3CCH-3418M	IDC	2	Socket to Socket	Unshielded	Flash	Multiple Ribbon	34	Gold	457.2 mm	1.5 ft	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm
Assmann WSW Components H3CCH-3406G	IDC	2	Socket to Socket	Unshielded	Flash		34	Gold			Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3CCH-3406M	IDC	2	Socket to Socket	Unshielded	Flash	Multiple Ribbon	34	Gold			Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm	152.4 mm	6 "	0.5 '
Assmann WSW Components H3CCH-3418G	IDC	2	Socket to Socket	Unshielded	Flash		34	Gold	457.2 mm	1.5 ft	Polarizing Key	0.05 "	1.27 mm	0.1 in	2.54 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

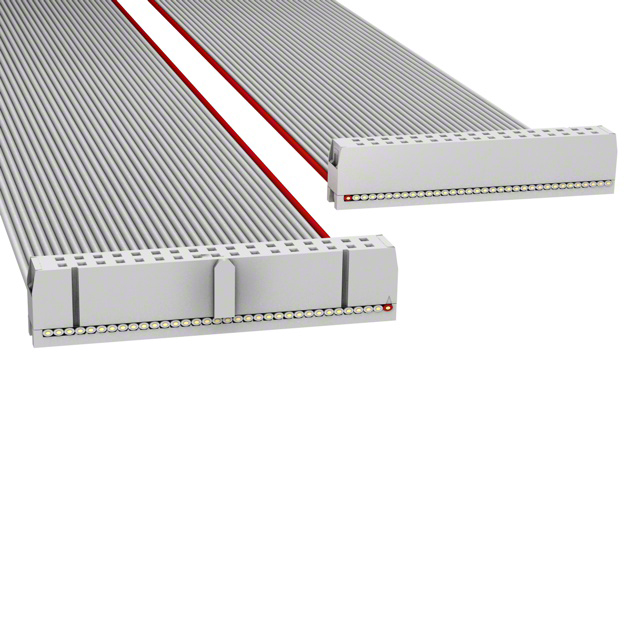

34 Position Cable Assembly Rectangular Socket to Socket 0.500' (152.40mm, 6.00")
