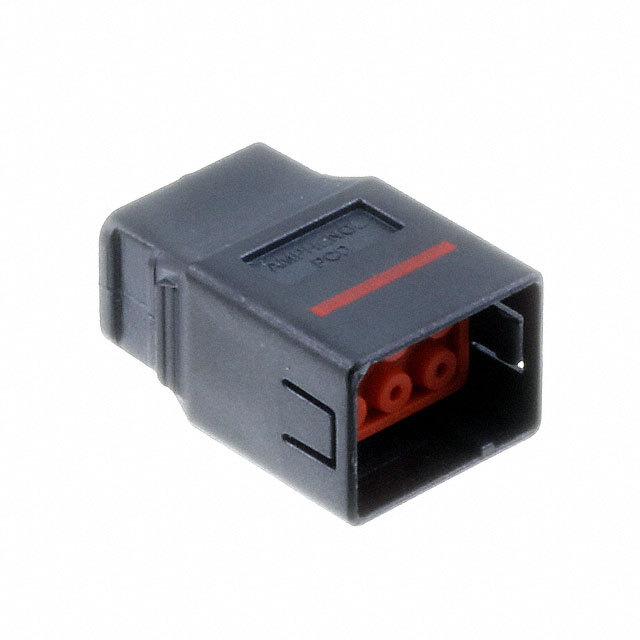

SQR620200
ActiveAMPHENOL PCD
CONN RCPT HSG 6POS 20AWG
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQR620200
ActiveAMPHENOL PCD
CONN RCPT HSG 6POS 20AWG
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | SQR620200 | SQR62 Series |
|---|---|---|
| Color | - | Black |
| Connector Type | Receptacle | Receptacle, Plug |
| Contact Termination | Crimp | Crimp |
| Contact Type | Male or Female | Female Socket, Male or Female, Male Pin |
| Fastening Type | Latch Lock | Latch Lock |
| Features | IP67 | IP67 |
| Insulation Material | Polyetherimide (PEI) | Polyetherimide (PEI) |
| Mounting Type | Free Hanging (In-Line) | Free Hanging (In-Line) |
| Note | Contacts Not Included | Contacts Not Included |
| Number of Positions | 6 | 6 |
| Number of Rows | 2 | 2 |
| Operating Temperature [Max] | 150 °C | 150 °C |
| Operating Temperature [Min] | -65 ░C | -65 ░C |
SQR62 Series
CONN RCPT HSG 6POS 20WG
| Part | Number of Rows | Note | Number of Positions | Insulation Material | Fastening Type | Color | Contact Type | Features | Connector Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
AMPHENOL PCD SQR620750 | 2 | Contacts Not Included | 6 | Polyetherimide (PEI) | Latch Lock | Black | Female Socket | IP67 | Receptacle | -65 ░C | 150 °C | Crimp | |
AMPHENOL PCD SQR620150 | 2 | Contacts Not Included | 6 | Polyetherimide (PEI) | Latch Lock | Male or Female | IP67 | Plug | -65 ░C | 150 °C | Crimp | Free Hanging (In-Line) | |
AMPHENOL PCD SQR620100 | 2 | Contacts Not Included | 6 | Polyetherimide (PEI) | Latch Lock | Male or Female | IP67 | Plug | -65 ░C | 150 °C | Crimp | Free Hanging (In-Line) | |
AMPHENOL PCD SQR620200 | 2 | Contacts Not Included | 6 | Polyetherimide (PEI) | Latch Lock | Male or Female | IP67 | Receptacle | -65 ░C | 150 °C | Crimp | Free Hanging (In-Line) | |
AMPHENOL PCD SQR620700 | 2 | Contacts Not Included | 6 | Polyetherimide (PEI) | Latch Lock | Black | Male Pin | IP67 | Receptacle | -65 ░C | 150 °C | Crimp |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 33.89 | |
Description
General part information
SQR62 Series
6 Rectangular Connectors - Housings Receptacle
