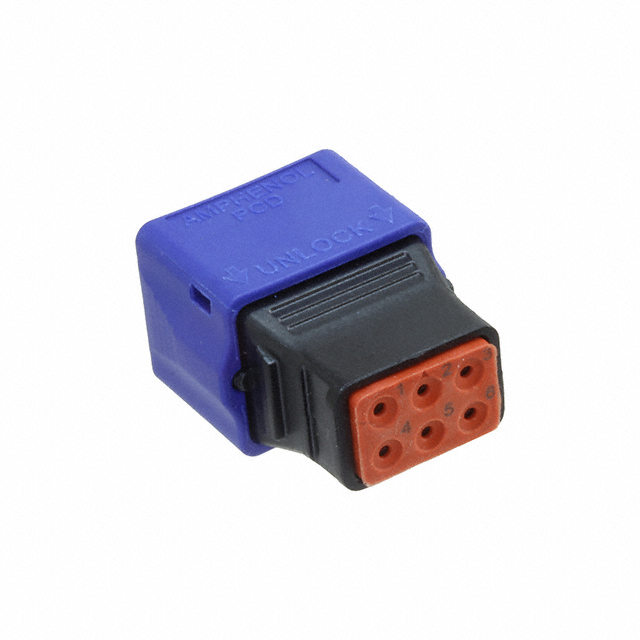

SQR620100

Active

AMPHENOL PCD

CONN PLUG HSG 6POS 20AWG

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN PLUG HSG 6POS 20AWG

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.92

General part information

6 Rectangular Connectors - Housings Plug

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	SQR620100	SQR62 Series

Color	-	Black
Connector Type	Plug	Receptacle, Plug
Contact Termination	Crimp	Crimp
Contact Type	Male or Female	Female Socket, Male or Female, Male Pin
Fastening Type	Latch Lock	Latch Lock
Features	IP67	IP67
Insulation Material	Polyetherimide (PEI)	Polyetherimide (PEI)
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Note	Contacts Not Included	Contacts Not Included
Number of Positions	6	6
Number of Rows	2	2
Operating Temperature [Max]	150 °C	150 °C
Operating Temperature [Min]	-65 ░C	-65 ░C

CONN RCPT HSG 6POS 20WG

Part	Number of Rows	Note	Number of Positions	Insulation Material	Fastening Type	Color	Contact Type	Features	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type
AMPHENOL PCD SQR620750	2	Contacts Not Included	6	Polyetherimide (PEI)	Latch Lock	Black	Female Socket	IP67	Receptacle	-65 ░C	150 °C	Crimp
AMPHENOL PCD SQR620150	2	Contacts Not Included	6	Polyetherimide (PEI)	Latch Lock		Male or Female	IP67	Plug	-65 ░C	150 °C	Crimp	Free Hanging (In-Line)
AMPHENOL PCD SQR620100	2	Contacts Not Included	6	Polyetherimide (PEI)	Latch Lock		Male or Female	IP67	Plug	-65 ░C	150 °C	Crimp	Free Hanging (In-Line)
AMPHENOL PCD SQR620200	2	Contacts Not Included	6	Polyetherimide (PEI)	Latch Lock		Male or Female	IP67	Receptacle	-65 ░C	150 °C	Crimp	Free Hanging (In-Line)
AMPHENOL PCD SQR620700	2	Contacts Not Included	6	Polyetherimide (PEI)	Latch Lock	Black	Male Pin	IP67	Receptacle	-65 ░C	150 °C	Crimp
