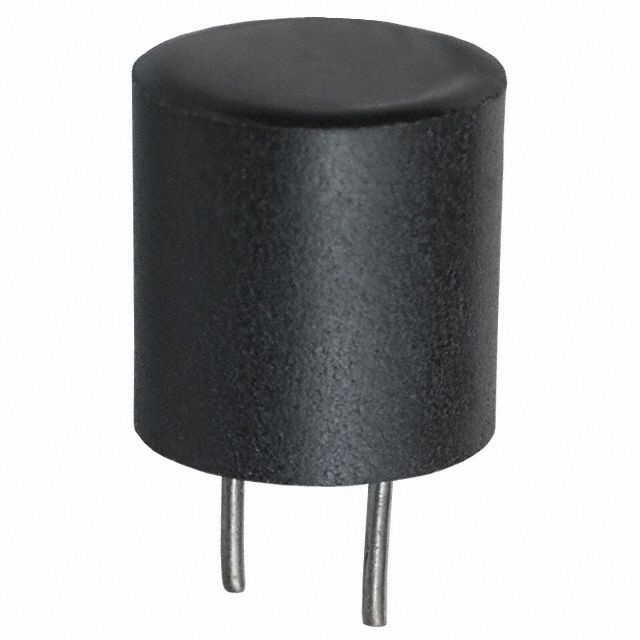

RL181S-562J-RC

Active

Bourns Inc.

FIXED IND 5.6MH 40MA 8.4 OHM TH

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RL181S-562J-RC

Active

Bourns Inc.

FIXED IND 5.6MH 40MA 8.4 OHM TH

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RL181S-562J-RC

Current Rating (Amps)	40 mA
DC Resistance (DCR)	8.4 Ohm
Frequency - Self Resonant	350 kHz
Height - Seated (Max)	14 mm
Height - Seated (Max) [Max]	0.551 "
Inductance	5.6 mH
Material - Core	Ferrite
Mounting Type	Through Hole
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	Radial, Vertical Cylinder
Q @ Freq	50 kHz, 100
Shielding	Shielded
Size / Dimension [diameter]	10.5 mm, 0.413 in
Tolerance	5 %
Type	Wirewound, Drum Core

RL181S Series

Part	Current Rating (Amps)	DC Resistance (DCR) [Max]	Inductance	Frequency - Self Resonant	Q @ Freq	Size / Dimension [diameter]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Material - Core	Mounting Type	Type	Shielding	DC Resistance (DCR)
Bourns Inc. RL181S-102J-RC	0.09 A	3.4 Ohm	1 mH	770 kHz	50 kHz 70	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded
Bourns Inc. RL181S-562J-RC	40 mA		5.6 mH	350 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded	8.4 Ohm
Bourns Inc. RL181S-104J-RC	9 mA	82 Ohm		90 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded
Bourns Inc. RL181S-683J-RC	11 mA	67 Ohm	68 mH	90 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded
Bourns Inc. RL181S-153J-RC	0.022 A		15 mH	220 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded	15 Ohm
Bourns Inc. RL181S-183J-RC	21 mA	17 Ohm	18 mH	190 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded
Bourns Inc. RL181S-393J-RC	0.015 A	45 Ohm	39 mH	120 kHz	50 kHz 100	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded
Bourns Inc. RL181S-182J-RC	0.065 A	4.5 Ohm	1.8 mH	570 kHz	50 kHz 70	0.413 in 10.5 mm	Radial Vertical Cylinder	105 ░C	-55 °C	14 mm	0.551 "	5 %	Ferrite	Through Hole	Drum Core Wirewound	Shielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 0.82

Description

General part information

RL181S Series

5.6 mH Shielded Drum Core, Wirewound Inductor 40 mA 8.4Ohm Max Radial, Vertical Cylinder
