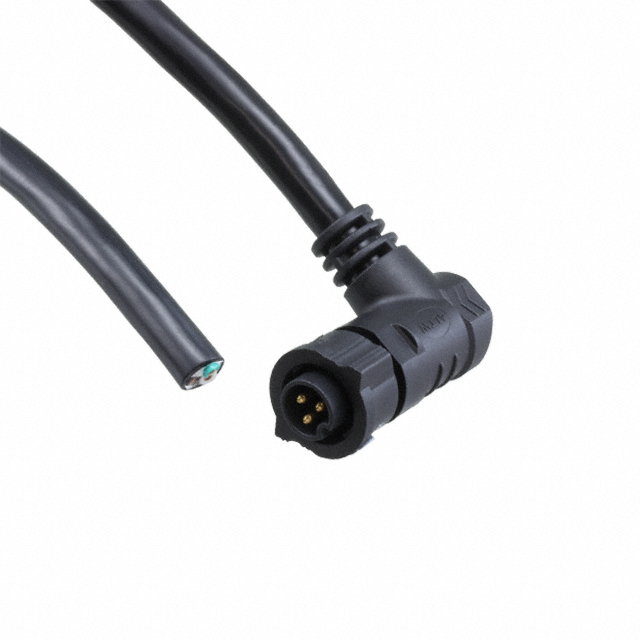

BB-03AFMM-QR8E01

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, PUSH LOCK, OVERMOLDED, LENGTH 1000MM,

Search across all available documentation for this part.

Active

Amphenol LTW

X-LOK, STANDARD SIZE, PLASTIC, 10A, 03 PINS, FEMALE CONNECTOR, MALE CONTACT, RIGHT ANGLE, PUSH LOCK, OVERMOLDED, LENGTH 1000MM,

Technical Specifications

Parameters and characteristics for this part

Specification	BB-03AFMM-QR8E01

1st Connector Gender	Male Pins
1st Connector Mounting Type	Free Hanging (In-Line)
1st Connector Number of Positions	3
1st Connector Number of Positions Loaded	All
1st Connector Orientation [custom]	Keyed
1st Connector Shell Size - Insert	B
1st Connector Type	Receptacle, Right Angle
2nd Connector Type	Wire Leads
Assembly Configuration	Standard
Cable Material	Polyvinyl Chloride (PVC)
Cable Type	Round
Color	Black
Ingress Protection	IP68 - Dust Tight, Waterproof
Length [x]	1 m
Length [x]	3.28 ft
Shielding	Unshielded
Usage	Industrial Environments

Part	1st Connector Mounting Type	1st Connector Gender	Shielding	1st Connector Number of Positions	Cable Type	Color	1st Connector Orientation [custom]	1st Connector Number of Positions Loaded	Ingress Protection	2nd Connector Type	Length [x]	Length [x]	1st Connector Shell Size - Insert	Cable Material	1st Connector Type	Usage	Assembly Configuration
Amphenol LTW BB-03AFMM-QR8E01	Free Hanging (In-Line)	Male Pins	Unshielded	3	Round	Black	Keyed	All	IP68 - Dust Tight Waterproof	Wire Leads	1 m	3.28 ft	B	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Industrial Environments	Standard
Amphenol LTW BB-03AFMM-QR8D01	Free Hanging (In-Line)	Male Pins	Shielded	3	Round	Black	Keyed	All	IP68 - Dust Tight Waterproof	Wire Leads	1 m	3.28 ft	B	Polyvinyl Chloride (PVC)	Receptacle Right Angle	Industrial Environments	Standard
Amphenol LTW BB-03AFMM-QL8D01	Free Hanging (In-Line)	Male Pins	Unshielded	3	Round	Black	Keyed	All	IP68 - Dust Tight Waterproof	Wire Leads	1 m	3.28 ft	B	Polyvinyl Chloride (PVC)	Receptacle	Industrial Environments	Standard

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Cable Assembly Unshielded 3.28' (1.00m)
