2047-2X20G00S1U

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 40 PIN,

Deep-Dive with AI

Search across all available documentation for this part.

2047-2X20G00S1U

Active

Oupiin

PCB SOCKET, DOUBLE ROW, 40 PIN,

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.48
		500	$ 2.07
		1000	$ 1.66
		1500	$ 1.41
		2000	$ 1.24

Description

General part information

2047 Series

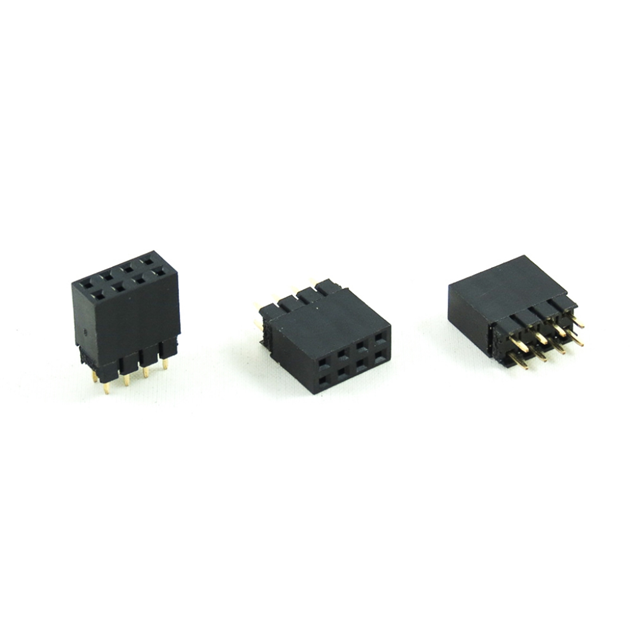

40 Position Elevated Socket Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	2047-2X20G00S1U	2047 Series

Connector Type	Elevated Socket	Elevated Socket
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	Flash	Flash
Contact Finish Thickness - Mating	-	10 çin
Contact Finish Thickness - Mating	-	0.25 çm
Contact Finish Thickness - Post	Flash	Flash
Contact Finish Thickness - Post	-	10 çin
Contact Finish Thickness - Post	-	0.25 çm
Contact Length - Post	2.5 mm	2.3 - 4.85 mm
Contact Length - Post	0.098 in	0.091 - 0.191 in
Contact Length - Post	-	0.181 in
Contact Length - Post	-	4.6 mm
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Type	Female Socket	Female Socket
Current Rating (Amps)	2 A	2 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	0.435 in	0.435 - 0.735 in
Insulation Height	11.05 mm	11.05 - 18.67 mm
Insulation Height	-	13.59 mm
Insulation Height	-	0.535 in
Insulation Material	Polybutylene Terephthalate (PBT)	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	40	8 - 64
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	1 - 3
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Termination	Solder	Solder

2047 Series

PCB SOCKET, DOUBLE ROW, 20 PIN,

Part	Insulation Material	Contact Material	Number of Rows	Connector Type	Current Rating (Amps)	Number of Positions	Insulation Color	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Contact Finish Thickness - Post	Fastening Type	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Termination	Number of Positions Loaded	Contact Length - Post	Contact Length - Post	Mounting Type	Insulation Height	Insulation Height	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Oupiin 2047-2X10G00S3U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	20	Black	Gold	2.54 mm	0.1 in	13.59 mm	0.535 in	Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.191 in	4.85 mm	Through Hole
Oupiin 2047-1X08G00S3U	Polybutylene Terephthalate (PBT)	Brass	1	Elevated Socket	2 A	8	Black	Gold			13.59 mm	0.535 in	Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.191 in	4.85 mm	Through Hole
Oupiin 2047-2X13G00S3U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	26	Black	Gold	2.54 mm	0.1 in	13.59 mm	0.535 in	Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.191 in	4.85 mm	Through Hole
Oupiin 2047-1X10G00S1U	Polybutylene Terephthalate (PBT)	Brass	1	Elevated Socket	2 A	10	Black	Gold					Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.098 in	2.5 mm	Through Hole	0.435 in	11.05 mm
Oupiin 2047-3X16G00S4U	Polybutylene Terephthalate (PBT)	Brass	3	Elevated Socket	2 A	48	Black	Gold	2.54 mm	0.1 in			Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.091 in	2.3 mm	Through Hole	0.635 in	16.13 mm
Oupiin 2047-1X03G00S1U	Polybutylene Terephthalate (PBT)	Brass	1	Elevated Socket	2 A		Black	Gold					Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.098 in	2.5 mm	Through Hole	0.435 in	11.05 mm
Oupiin 2047-2X32G00S5U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	64	Black	Gold	2.54 mm	0.1 in			Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All			Through Hole	0.435 in	11.05 mm
Oupiin 2047-2X32G00S1U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	64	Black	Gold	2.54 mm	0.1 in			Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.098 in	2.5 mm	Through Hole	0.435 in	11.05 mm
Oupiin 2047-2X20G00S1U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	40	Black	Gold	2.54 mm	0.1 in			Flash	105 ░C	-55 °C	Female Socket	Flash	Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.098 in	2.5 mm	Through Hole	0.435 in	11.05 mm
Oupiin 2047-2X20G10S3U	Polybutylene Terephthalate (PBT)	Brass	2	Elevated Socket	2 A	40	Black	Gold	2.54 mm	0.1 in	13.59 mm	0.535 in		105 ░C	-55 °C	Female Socket		Push-Pull	Square	0.1 in	2.54 mm	Gold	UL94 V-0	Solder	All	0.191 in	4.85 mm	Through Hole			10 çin	0.25 çm	10 çin	0.25 çm
