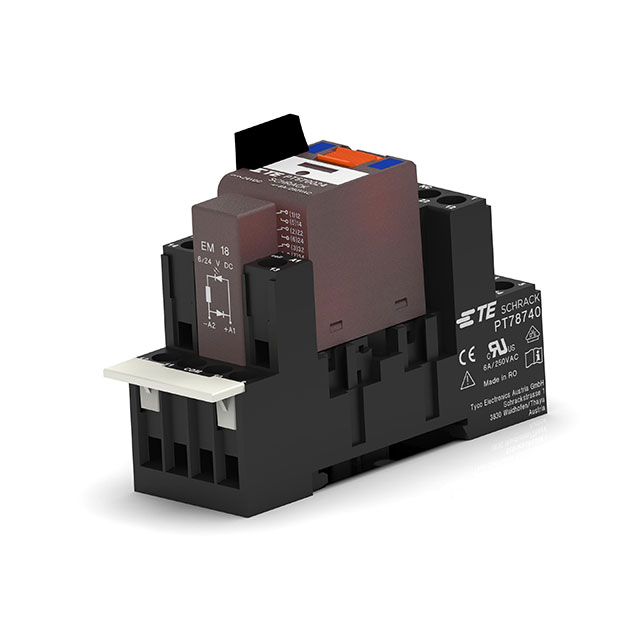

1415366-1

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 6A 115V

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE 4PDT 6A 115V

Technical Specifications

Parameters and characteristics for this part

Specification	1415366-1

Approval Agency	cURus, VDE
Coil Current	23.7 mA
Coil Insulation	Class F
Coil Resistance	4.85 kOhms
Coil Type	Non Latching
Coil Voltage	115 VAC
Contact Form	4PDT (4 Form C)
Contact Material	Silver Nickel (AgNi)
Contact Rating (Current)	6 A
Features	Socket Included, Lighted Indicator, Mechanical Indicator, Test Button
Load - Max Switching	1440 VA
Mounting Type	DIN Rail
Must Operate Voltage	92 VAC
Must Release Voltage	34.5 VAC
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Relay Type	General Purpose
Switching Voltage	240 VAC
Termination Style	Screw Terminal

Part	Termination Style	Mounting Type	Must Operate Voltage	Must Release Voltage	Switching Voltage	Coil Insulation	Features	Contact Rating (Current)	Operating Temperature [Min]	Operating Temperature [Max]	Relay Type	Coil Resistance	Coil Type	Contact Material	Coil Current	Approval Agency	Coil Voltage	Load - Max Switching	Contact Form
TE Connectivity Potter & Brumfield Relays 1415366-1	Screw Terminal	DIN Rail	92 VAC	34.5 VAC	240 VAC	Class F	Lighted Indicator Mechanical Indicator Socket Included Test Button	6 A	-40 °C	70 °C	General Purpose	4.85 kOhms	Non Latching	Silver Nickel (AgNi)	23.7 mA	cURus VDE	115 VAC	1440 VA	4PDT (4 Form C)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 35.01

General part information

General Purpose Relay 4PDT (4 Form C) 115VAC Coil DIN Rail
