SF1750-6101

Active

Amphenol SV Microwave

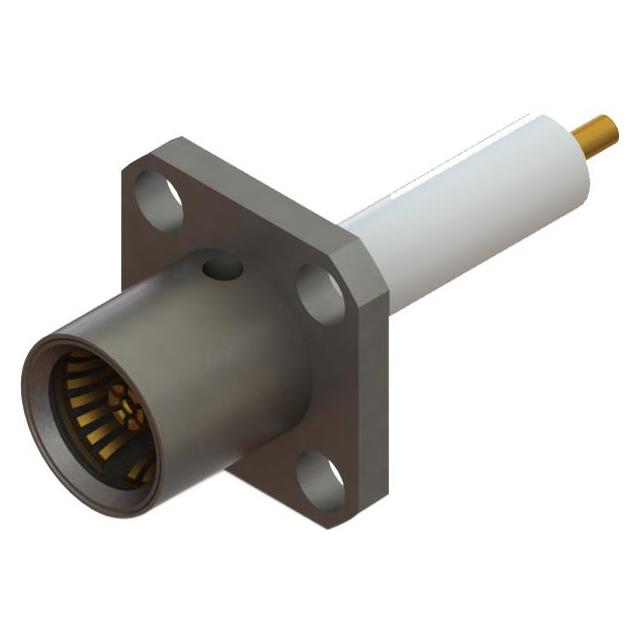

BMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Search across all available documentation for this part.

Active

Amphenol SV Microwave

BMA FEMALE FLANGE MOUNT CONNECTOR, 4 HOLE (CANDLESTICK) /INDIVIDUAL - TRAY (PACK FILL QTY: 50)

Technical Specifications

Parameters and characteristics for this part

Specification	SF1750-6101

Body Material	Stainless Steel
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BMA
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Extended Insulation
Frequency - Max [Max]	18 GHz
Housing Color	Silver
Impedance	50 Ohms
Mating Cycles	5000
Mounting Feature	Flange
Number of Ports	1
Shield Termination	Solder

Part	Contact Termination	Connector Style	Features	Impedance	Body Material	Shield Termination	Mating Cycles	Housing Color	Fastening Type	Center Contact Material	Center Contact Plating	Frequency - Max [Max]	Dielectric Material	Number of Ports	Mounting Feature	Connector Type
Amphenol SV Microwave SF1750-6101	Solder	BMA	Extended Insulation	50 Ohms	Stainless Steel	Solder	5000	Silver	Snap-On	Beryllium Copper	Gold	18 GHz	Polytetrafluoroethylene (PTFE)	1	Flange	Female Socket Jack

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BMA Connector Jack, Female Socket 50 Ohms Panel Mount Solder
