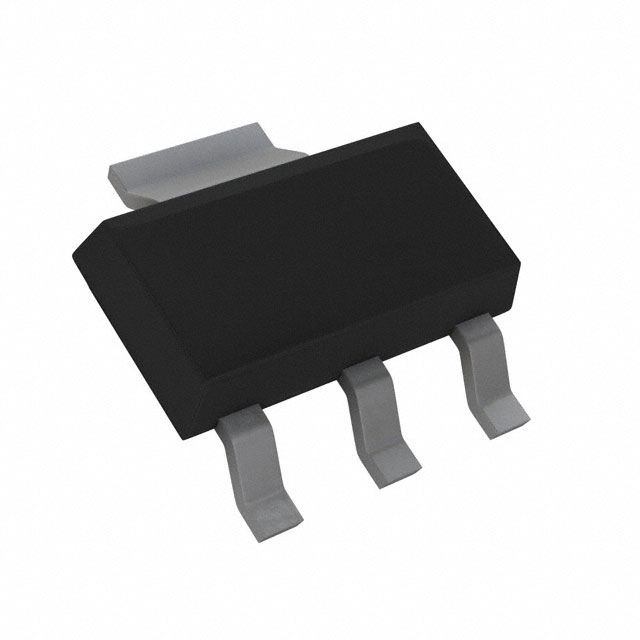

PZTA44-G

Active

Comchip Technology

TRANS NPN 400V 0.2A SOT223

Search across all available documentation for this part.

Active

Comchip Technology

TRANS NPN 400V 0.2A SOT223

Technical Specifications

Parameters and characteristics for this part

Specification	PZTA44-G

Current - Collector (Ic) (Max) [Max]	200 mA
Current - Collector Cutoff (Max) [Max]	100 nA
DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	50 hFE
Frequency - Transition	20 MHz
Mounting Type	Surface Mount
Operating Temperature	150 °C
Package / Case	TO-261AA, TO-261-4
Power - Max [Max]	1 W
Supplier Device Package	SOT-223
Transistor Type	NPN
Vce Saturation (Max) @ Ib, Ic	750 mV
Voltage - Collector Emitter Breakdown (Max)	400 V

TRANS NPN 400V 0.2A SOT223

Part	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Supplier Device Package	Mounting Type	Power - Max [Max]	Frequency - Transition	Package / Case	Transistor Type	Vce Saturation (Max) @ Ib, Ic	Voltage - Collector Emitter Breakdown (Max)	Current - Collector Cutoff (Max) [Max]	Operating Temperature	Current - Collector (Ic) (Max) [Max]
Comchip Technology PZTA44-G	50 hFE	SOT-223	Surface Mount	1 W	20 MHz	TO-261-4, TO-261AA	NPN	750 mV	400 V	100 nA	150 °C	200 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar (BJT) Transistor NPN 400 V 200 mA 20MHz 1 W Surface Mount SOT-223

Technical documentation and resources

No documents available
