9306 060500

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Search across all available documentation for this part.

Active

Belden Inc.

MULTI-PAIR 12COND 22AWG

Technical Specifications

Parameters and characteristics for this part

Specification	9306 060500

Cable Type	Multi-Pair
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand	Solid
Features	Drain Wire
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	12
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Shield Coverage	100 %
Shield Material	Aluminum
Shield Type	Foil
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	22 AWG

Part	Wire Gauge	Jacket (Insulation) Material	Shield Material	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Strand	Conductor Insulation	Usage	Voltage	Conductor Material	Ratings	Jacket Color	Cable Type	Features	Shield Type	Shield Coverage	Number of Conductors	Length [x]	Length [x]
Belden Inc. 9306 060500	22 AWG	Poly-Vinyl Chloride (PVC)	Aluminum	-20 C	80 C	Solid	Poly-Vinyl Chloride (PVC)	Audio Control Instrumentation	300 V	Copper Tinned	UL Style 2464	Chrome	Multi-Pair	Drain Wire	Foil	100 %	12	500 '	152.4 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 4.83

General part information

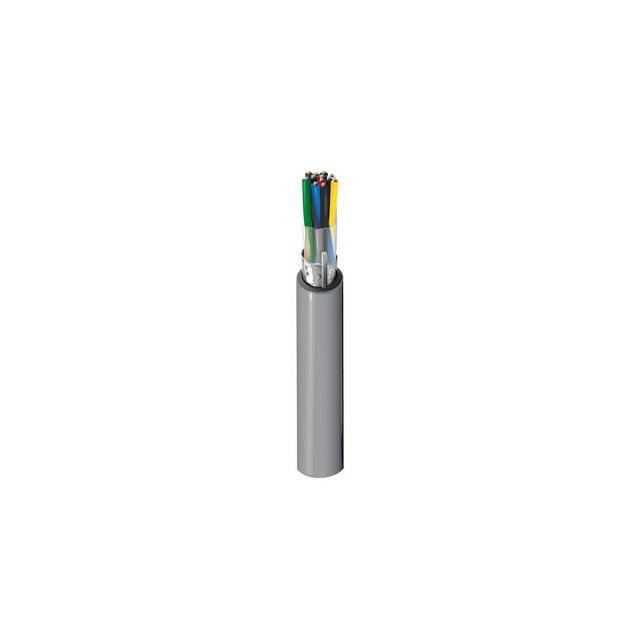

12 (6 Pair Twisted) Conductor Multi-Pair Cable Chrome 22 AWG Foil 500.0' (152.4m)
