FHG.1B.307.CLAD62

Active

LEMO

CIRCULAR CONNECTORS &AMP; CABLE CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 70.85
LCSC	Piece	1	$ 194.97
		200	$ 77.79
		500	$ 75.19
		1000	$ 73.91

Description

General part information

FHG.1B Series

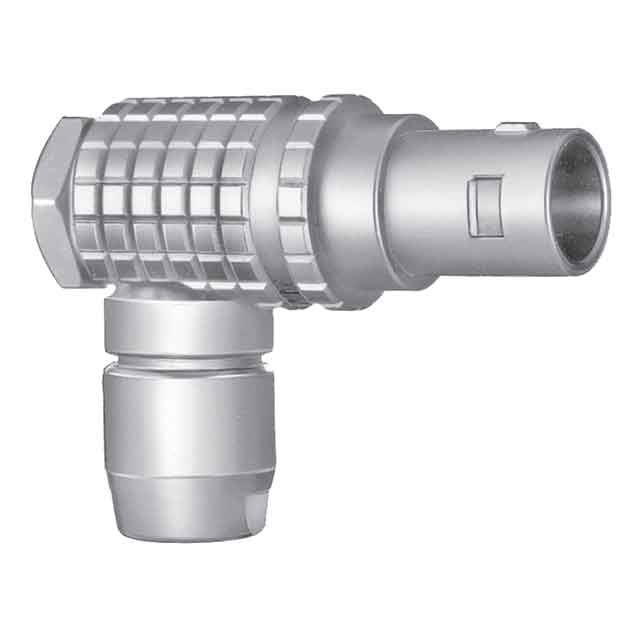

7 Position Circular Connector Plug, Male Pins Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	FHG.1B.307.CLAD62	FHG.1B Series

	-	-
Accessory Type	-	Locknut, Midpiece
Backshell Material, Plating	Brass, Chrome	Brass, Chrome, Aluminum, Nickel
Cable Opening	-	0.165 - 0.205 in
Cable Opening	-	3.1 - 4.2 mm
Cable Opening	-	5.2 mm
Cable Opening	-	0.244 - 0.283 in
Cable Opening	-	6.2 - 7.2 mm
Cable Opening	-	0.087 in
Cable Opening	-	2.7 mm
Cable Opening	-	2.2 mm
Cable Opening	-	0.106 in
Cable Opening	-	0.122 - 0.165 in
Cable Opening	-	7.6 mm
Cable Opening [Max] [diameter]	6.2 mm	6.2 mm
Cable Opening [Max] [diameter]	0.244 in	0.244 - 0.299 in
Cable Opening [Min] [diameter]	5.2 mm	5.2 - 7.2 mm
Cable Opening [Min] [diameter]	0.205 in	0.205 - 0.283 in
Color	Silver	Silver, Gray
Connector Type	Plug, Male Pins	Plug, Male Pins, Insert Shell
Contact Finish - Mating	Gold	Gold
Contact Finish Thickness - Mating	1 µm	1 µm
Contact Finish Thickness - Mating	39.4 µin	39.4 µin
Contact Material	Brass	Brass
Current Rating (Amps)	7 A	1.5 - 15 A
Fastening Type	Push-Pull	Push-Pull, Detent Lock
Features	Backshell	Backshell
For Use With/Related Products	-	1B Series Plug
Housing Color	-	Silver
Ingress Protection	IP50	IP50
Insert Material	Polyetheretherketone (PEEK)	Polyetheretherketone (PEEK)
Material	-	Brass
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line), Right Angle	Free Hanging (In-Line), Right Angle
Note	-	Contacts Not Included; Insert Not Included
Number of Positions	7	2 - 14
Number of Positions	-	16
Operating Temperature [Max]	250 °C	250 °C
Operating Temperature [Min]	-55 °C	-55 °C
Orientation	G	G
Primary Material	Metal	Metal
Shell Finish	Chrome	Chrome, Nickel
Shell Material	Brass	Brass, Aluminum
Shell Size - Insert	307	302 - 731
Shielding	Shielded	Shielded
Termination	-	Crimp

FHG.1B Series

CONN PLUG MALE 4P GOLD SLDR CUP

...

Part	Connector Type	Contact Finish - Mating	Contact Material	Ingress Protection	Shielding	Current Rating (Amps)	Color	Shell Size - Insert	Orientation	Shell Finish	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Backshell Material, Plating	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Features	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Insert Material	Mounting Type	Material Flammability Rating	Shell Material	Termination	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Material	Accessory Type	For Use With/Related Products
LEMO FHG.1B.304.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	10 A	Silver	304	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	4	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.302.CYCD52Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	15 A	Silver	302	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	2	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass	Crimp
LEMO FHG.1B.314.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	2 A	Silver	314	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	14	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.305.CYCD72Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	9 A	Silver	305	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C		Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass	Crimp	0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FHG.1B.310.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	2.5 A	Silver	310	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	10	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
LEMO FHG.1B.308.CLAM27Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	5 A	Silver	308	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	8	Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass				0.087 in	2.7 mm	2.2 mm	0.106 in
LEMO FHG.1B.307.CLAD62	Male Pins, Plug	Gold	Brass	IP50	Shielded	7 A	Silver	307	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	7	Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass								6.2 mm	5.2 mm	0.205 in	0.244 in
LEMO FHG.1B.140.LC							Silver																															Brass	Locknut	1B Series Plug
LEMO FHG.1B.303.CLAD72Z	Male Pins, Plug	Gold	Brass	IP50	Shielded	12 A	Silver	303	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C		Backshell				Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass		0.244 in, 0.283 in	6.2 mm, 7.2 mm
LEMO FHG.1B.302.CLAD52	Male Pins, Plug	Gold	Brass	IP50	Shielded	15 A	Silver	302	G	Chrome	Push-Pull	1 µm	39.4 µin	Brass, Chrome	Metal	-55 °C	250 °C	2	Backshell	0.165 in, 0.205 in	4.2 mm	5.2 mm	Polyetheretherketone (PEEK)	Free Hanging (In-Line), Right Angle	UL94 V-0	Brass
