SDS100-PRW2-F09-SN00-6

Obsolete

Sullins Connector Solutions

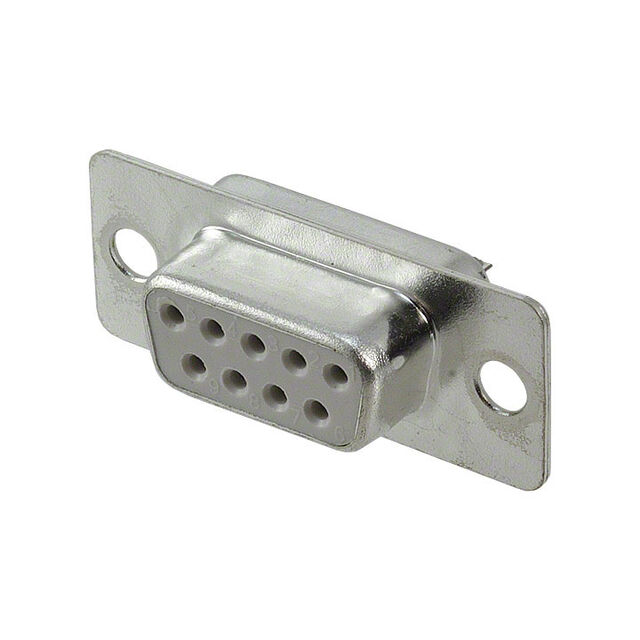

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SDS100-PRW2-F09-SN00-6

Obsolete

Sullins Connector Solutions

CONN D-SUB RCPT 9POS SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SDS100-PRW2-F09-SN00-6

Color	White
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Form	Stamped
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	3 A
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Mounting Type	Free Hanging (In-Line)
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	250 VDC
Wire Gauge	22 AWG

SDS100 Series

Part	Shell Size, Connector Layout	Wire Gauge	Current Rating (Amps)	Features	Contact Finish Thickness	Contact Finish	Dielectric Material	Operating Temperature [Max]	Operating Temperature [Min]	Flange Feature	Connector Style	Contact Form	Voltage Rating	Material Flammability Rating	Mounting Type	Contact Material	Connector Type	Contact Type	Number of Positions	Number of Rows	Color	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout
Sullins Connector Solutions SDS100-PRW2-M50-SN00-1	5	22 AWG	3 A	Grounding Indents	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Male Pins Plug	Signal	50	3	Black
Sullins Connector Solutions SDS100-PRP2-F09-MN00-6		22 AWG	3 A		Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub		250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Signal	9	2	White	DE E	1
Sullins Connector Solutions SDS100-PRW2-F09-SN11-6		22 AWG	3 A		Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	4-40	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Signal	9	2	White	DE E	1
Sullins Connector Solutions SDS100-PRW2-M09-SN00-1		22 AWG	3 A	Grounding Indents	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Male Pins Plug	Signal	9	2	Black	DE E	1
Sullins Connector Solutions SDS100-PRW2-F09-SN00-6		22 AWG	3 A		Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Signal	9	2	White	DE E	1
Sullins Connector Solutions SDS100-PRW2-F25-SN00-1		22 AWG	3 A		Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Signal		2	Black	B DB	3
Sullins Connector Solutions SDS100-PRW2-M37-SN00-1		22 AWG	3 A	Grounding Indents	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Male Pins Plug	Signal	37	2	Black			4 (DC C)
Sullins Connector Solutions SDS100-PRW2-M25-SN00-6		22 AWG	3 A	Grounding Indents	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Male Pins Plug	Signal		2	White	B DB	3
Sullins Connector Solutions SDS100-PRW2-F09-SN81-1		22 AWG	3 A		Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Female Screwlock (4-40) Mating Side	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Receptacle Female Sockets	Signal	9	2	Black	DE E	1
Sullins Connector Solutions SDS100-PRW2-M15-SN00-1	2	22 AWG	3 A	Grounding Indents	Flash	Gold	Polybutylene Terephthalate (PBT) Glass Filled	105 ░C	-55 °C	Housing/Shell (Unthreaded)	D-Sub	Stamped	250 VDC	UL94 V-0	Free Hanging (In-Line)	Brass	Male Pins Plug	Signal	15	2	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SDS100 Series

9 Position D-Sub Receptacle, Female Sockets Connector
