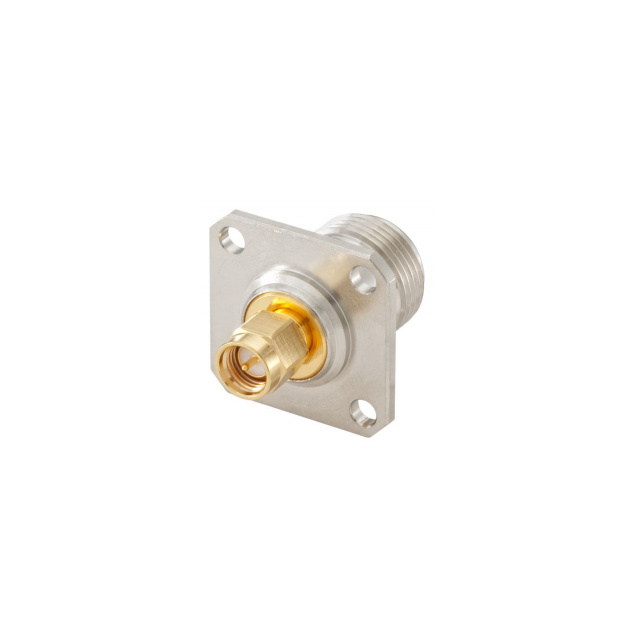

32S453-K00L5

Active

Rosenberger

SMA ADAPTER

Search across all available documentation for this part.

Active

Rosenberger

SMA ADAPTER

Technical Specifications

Parameters and characteristics for this part

Specification	32S453-K00L5

Adapter Type	Plug to Jack
Body Finish	Nickel, Gold
Body Material	Brass
Center Contact Material	Brass, Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	Female Socket, N Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	11 GHz
Impedance	50 Ohms
Insertion Loss	0.13 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Style	Straight

Part	Center Contact Material	Mounting Type	Impedance	Fastening Type	Mating Cycles	Body Finish	Center Contact Plating	Adapter Type	Style	Insertion Loss	Conversion Type	Convert From (Adapter End)	Dielectric Material	Convert To (Adapter End)	Operating Temperature [Max]	Operating Temperature [Min]	Frequency - Max [Max]	Body Material
Rosenberger 32S453-K00L5	Beryllium Copper Brass	Free Hanging (In-Line)	50 Ohms	Snap-On Threaded	500	Gold Nickel	Gold	Plug to Jack	Straight	0.13 dB	Between Series	SMA Plug Male Pin	Polytetrafluoroethylene (PTFE)	Female Socket N Jack	155 °C	-55 °C	11 GHz	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	14	$ 46.32

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To N Jack, Female Socket 50 Ohms
