QSFP-H40G-AOC1M-C

Active

ATGBICS

COMPATIBLE AOC 40G 1M

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QSFP-H40G-AOC1M-C

Active

ATGBICS

COMPATIBLE AOC 40G 1M

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 174.00
		50	$ 165.30
		150	$ 156.60
		1000	$ 147.90

Description

General part information

QSFP-H40 Series

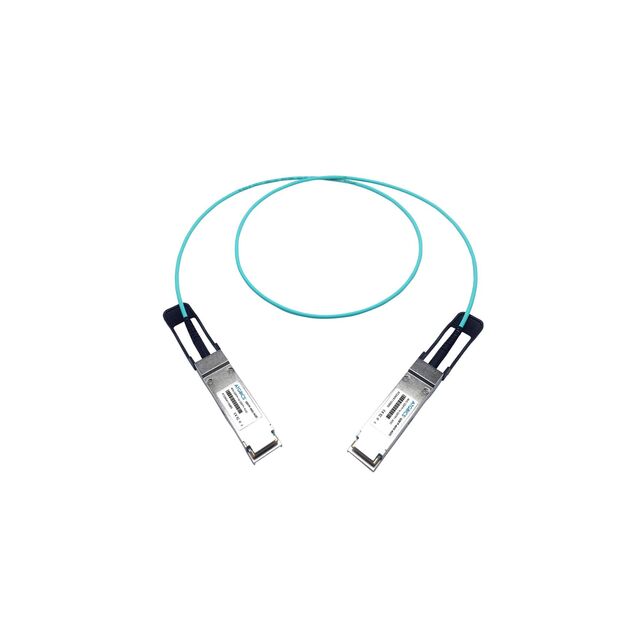

Position QSFP+ to QSFP+ Plug to Plug 3.28' (1.00m) Orange, Aqua Unshielded

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	QSFP-H40G-AOC1M-C	QSFP-H40 Series

Cable Connectors	QSFP+ to QSFP+	QSFP+ to QSFP+
Cable Type	Round	Round, Round, Twin Axial
Color	Aqua, Orange	Aqua, Orange, Black
Connector Type	Plug to Plug	Plug to Plug
Fastening Type	Push-Pull	Push-Pull, Latch Lock
Features	Active	Active, Passive
Frequency - Max	-	40 Gbps
Gender	Male to Male	Male to Male
Length	-	1.5 - 30 m
Length	-	4.92 - 98.43 ft
Length [x]	1 m	1 - 500 m
Length [x]	3.28 ft	1.64 - 22.97 '
Number of Positions	-	38
Operating Temperature [Max]	70 °C	70 °C
Operating Temperature [Min]	0 °C	0 °C
Shielding	Unshielded	Unshielded
Usage	Data Center Server Rack, Ethernet, Network	Data Center Server Rack, Ethernet, Network
Wire Gauge	-	28 AWG, 30 AWG
Wire Gauge	-	24 - 30 AWG

QSFP-H40 Series

COMPATIBLE AOC 40G 10M

Part	Usage	Cable Connectors	Cable Type	Fastening Type	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Gender	Color	Length	Length	Features	Shielding	Length [x]	Length [x]	Wire Gauge	Wire Gauge
ATGBICS QSFP-H40G-AOC10M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	10 m	32.81 ft	Active	Unshielded
ATGBICS QSFP-H40G-AOC7M-C	Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug			Male to Male				Active	Unshielded	22.97 '	7 m
ATGBICS QSFP-H40G-CU3M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	9.84 ft	3 m	28 AWG, 30 AWG
ATGBICS QSFP-H40G-AOC30M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	30 m	98.43 ft	Active	Unshielded
ATGBICS QSFP-H40G-AOC1M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange			Active	Unshielded	3.28 ft	1 m
ATGBICS QSFP-H40G-AOC20M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Aqua, Orange	20 m	65.62 ft	Active	Unshielded
ATGBICS QSFP-H40G-CU1M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	3.28 ft	1 m		30 AWG
ATGBICS QSFP-H40G-CU7M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black			Passive	Unshielded	22.97 '	7 m		24 AWG
ATGBICS QSFP-H40G-AOC2M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male				Active	Unshielded	6.56 ft	2 m
ATGBICS QSFP-H40G-ACU10M-C	Data Center Server Rack, Ethernet, Network	QSFP+ to QSFP+	Round	Push-Pull	Plug to Plug	70 °C	0 °C	Male to Male	Black	10 m	32.81 ft	Active	Unshielded				28 AWG
