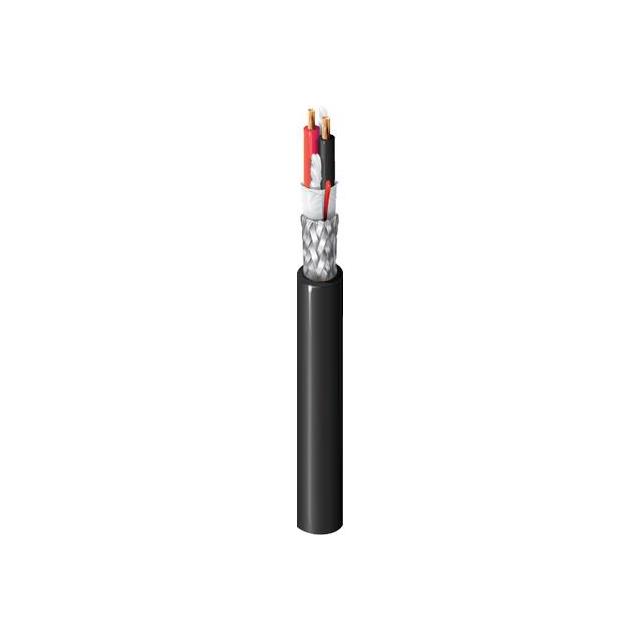

2221 G7VU1000

Active

Belden Inc.

1 PR #26 FHDPE BRD PVC

Search across all available documentation for this part.

Active

Belden Inc.

1 PR #26 FHDPE BRD PVC

Technical Specifications

Parameters and characteristics for this part

Specification	2221 G7VU1000

Cable Type	Multi-Conductor
Conductor Insulation	Foam Polyethylene (FPE)
Conductor Material	Copper, Bare
Jacket (Insulation) Diameter [diameter]	0.17 in
Jacket (Insulation) Diameter [diameter]	4.32 mm
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.622 mm
Jacket (Insulation) Thickness	0.0245 in
Jacket Color	Red
Length	1000 ft
Length	304.8 m
Number of Conductors	2
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 C
Shield Coverage	95 %
Shield Material	Copper, Tinned
Shield Type	Braid
Usage	Audio
Voltage	300 V
Wire Gauge	26 AWG

Part	Conductor Material	Shield Material	Wire Gauge	Shield Type	Shield Coverage	Number of Conductors	Cable Type	Jacket Color	Jacket (Insulation) Material	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Usage	Voltage	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Insulation	Length	Length	Operating Temperature [Min]	Operating Temperature [Max]
Belden Inc. 2221 G7VU1000	Copper Bare	Copper Tinned	26 AWG	Braid	95 %	2	Multi-Conductor	Red	Poly-Vinyl Chloride (PVC)	0.622 mm	0.0245 in	Audio	300 V	0.17 in	4.32 mm	Foam Polyethylene (FPE)	1000 ft	304.8 m	-20 C	60 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

2 (1 Pair) Conductor Multi-Conductor Cable Red 26 AWG Braid 1000.0' (304.8m)
