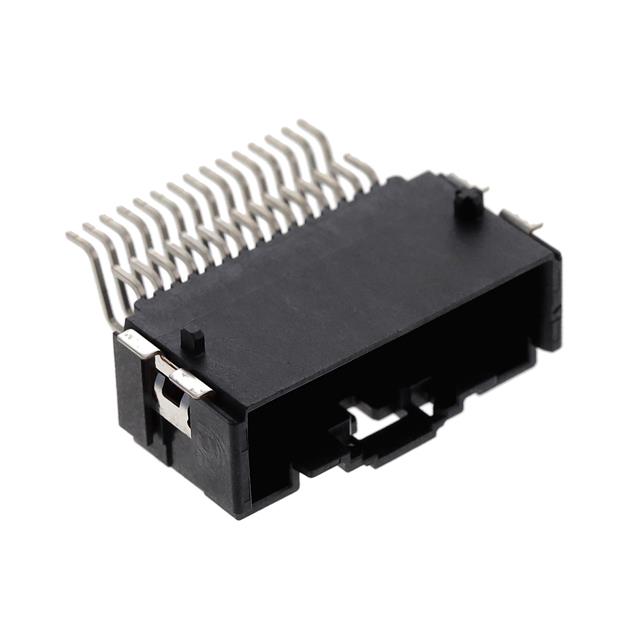

10145030-130KLF

Active

Amphenol ICC (FCI)

CONN MICROSPACE HDR-ASSY STS D

Deep-Dive with AI

Search across all available documentation for this part.

Documentsgs-20-0513Other Related Documents 10161117-001 +1

10145030-130KLF

Active

Amphenol ICC (FCI)

CONN MICROSPACE HDR-ASSY STS D

Deep-Dive with AI

Documentsgs-20-0513Other Related Documents 10161117-001 +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	10145030-130KLF

Applications	Industrial, General Purpose, Automotive
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	118.1 µin
Contact Finish Thickness - Mating	3 µm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	4 A
Fastening Type	Latch Holder
Features	Solder Retention, Board Guide
Insulation Color	Black
Insulation Height	0.369 in
Insulation Height	9.37 mm
Insulation Material	Thermoplastic
Material Flammability Rating	UL94 V-0
Mounting Type	Surface Mount, Right Angle
Number of Positions	30
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	2.06 mm
Row Spacing - Mating	0.081 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	48 VDC

10145030 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions	Applications	Voltage Rating	Insulation Color	Termination	Connector Type	Contact Shape	Material Flammability Rating	Contact Finish - Post	Fastening Type	Mounting Type	Number of Rows	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Style	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions Loaded	Features	Pitch - Mating	Pitch - Mating	Row Spacing - Mating	Row Spacing - Mating	Contact Material	Contact Finish Thickness - Mating	Contact Finish - Mating
Amphenol ICC (FCI) 10145030-124KLF	-40 °C	130 °C	Thermoplastic	24	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy
Amphenol ICC (FCI) 10145030-320KLF	-40 °C	130 °C	Thermoplastic	20	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	0.76 Ám		All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy	30 Áin	Gold
Amphenol ICC (FCI) 10145030-218KLF	-40 °C	130 °C	Thermoplastic	18	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy
Amphenol ICC (FCI) 10145030-222KLF	-40 °C	130 °C	Thermoplastic	22 positions	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy
Amphenol ICC (FCI) 10145030-130KLF	-40 °C	130 °C	Thermoplastic	30	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy
Amphenol ICC (FCI) 10145030-318KLF	-40 °C	130 °C	Thermoplastic	18	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	0.76 Ám		All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy	30 Áin	Gold
Amphenol ICC (FCI) 10145030-228KLF	-40 °C	130 °C	Thermoplastic	28	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy
Amphenol ICC (FCI) 10145030-322KLF	-40 °C	130 °C	Thermoplastic	22 positions	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	0.76 Ám		All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy	30 Áin	Gold
Amphenol ICC (FCI) 10145030-314KLF	-40 °C	130 °C	Thermoplastic	14	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	0.76 Ám		All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy	30 Áin	Gold
Amphenol ICC (FCI) 10145030-224KLF	-40 °C	130 °C	Thermoplastic	24	Automotive General Purpose Industrial	48 VDC	Black	Solder	Header	Square	UL94 V-0	Tin	Latch Holder	Surface Mount Right Angle	2	4 A	0.369 in	9.37 mm	Shrouded - 4 Wall	Board to Cable/Wire	Male Pin	118.1 µin	3 µm	All	Board Guide Solder Retention	0.05 in	1.27 mm	2.06 mm	0.081 in	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 3.68
		10	$ 2.82
		25	$ 2.54
		50	$ 2.35
		100	$ 2.18
	Tape & Reel (TR)	250	$ 1.97
		500	$ 1.84
		750	$ 1.76
		1250	$ 1.67
		1750	$ 1.62
		2500	$ 1.56
		6250	$ 1.46

Description

General part information

10145030 Series

Connector Header Surface Mount, Right Angle 30 position 0.050" (1.27mm)
