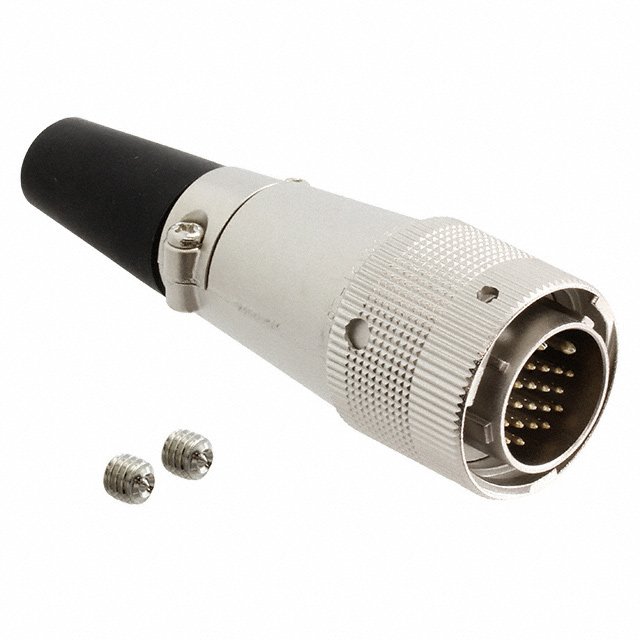

SRCB06A21-26P

Obsolete

JAE Electronics

CONN PLUG MALE 26POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

JAE Electronics

CONN PLUG MALE 26POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type	Features	Fastening Type	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Number of Positions	Mounting Type	Orientation
JAE Electronics SRCB06A21-26P	85 °C	-40 °C	Male Pins Plug	Backshell Coupling Nut	Bayonet Lock	26	21	26	Free Hanging (In-Line)	Keyed
JAE Electronics SRCB06A21-26S	85 °C	-40 °C	Female Sockets Plug	Backshell Coupling Nut	Bayonet Lock	26	21	26	Free Hanging (In-Line)	Keyed
JAE Electronics SRCB06A21-26P-(13)	85 °C	-40 °C	Male Pins Plug	Backshell Coupling Nut	Bayonet Lock	26	21	26	Free Hanging (In-Line)	Keyed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

26 Position Circular Connector Plug, Male Pins Solder Cup
