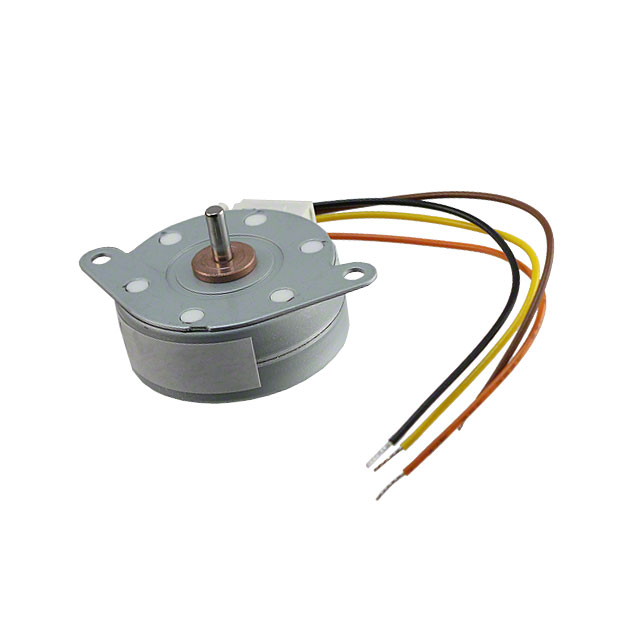

PM35S-048-HHC6

Active

NMB TECHNOLOGIES

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 50 MN-M, 600 MA

Search across all available documentation for this part.

Active

NMB TECHNOLOGIES

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 50 MN-M, 600 MA

Technical Specifications

Parameters and characteristics for this part

STEPPER MOTOR, PERMANENT MAGNET, PERMANENT MAGNET, BIPOLAR, 7.5 °, 50 MN-M, 600 MA

Part	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Coil Type	Length - Shaft and Bearing [x]	Length - Shaft and Bearing [x]	Step Angle	Torque - Holding (oz-in / mNm)	Torque - Holding (oz-in / mNm)	Coil Resistance	Termination Style	Size / Dimension [diameter]	Size / Dimension [diameter]	Type	Voltage - Rated	Current Rating (Amps)	Mounting Hole Spacing	Mounting Hole Spacing	Features
NMB TECHNOLOGIES PM35S-048-HHC6	3 mm	0.118 in	Bipolar	0.394 in	10 mm	7.5 °	6.94 oz-in	49 mNm	5.5 Ohms	Wire Leads	1.378 in	35 mm	Permanent Magnet	24 VDC	600 mA	42 mm	1.65 in	Round Shaft

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bipolar Stepper Motor Permanent Magnet Frame Size 48.0 Step 600 mA 24VDC
