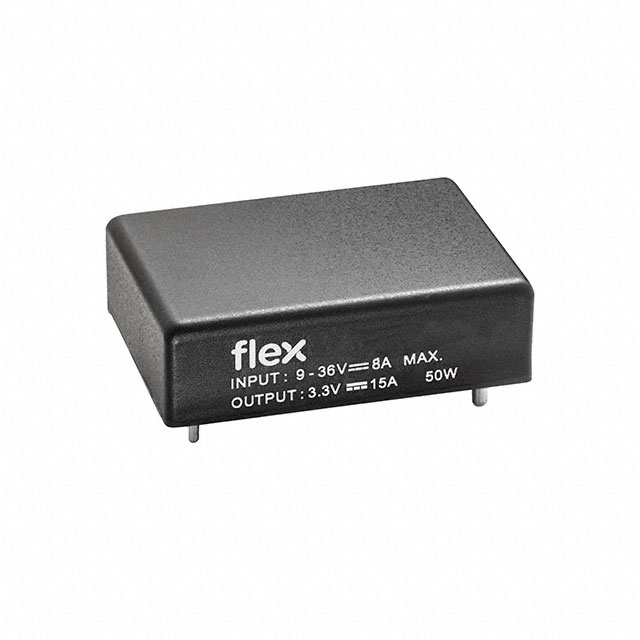

PKU3510SPI
ActiveFlex Power Modules
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PKU3510SPI
ActiveFlex Power Modules
DC DC CONVERTER 3.3V 50W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PKU3510SPI |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CB, UL, IEC, TUV, CSA |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 15 A |
| Efficiency | 90 % |
| Features | Remote On/Off, Adjustable Output, Remote Sense |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Sixteenth Brick |
| Power (Watts) | 50 W |
| Size / Dimension [x] | 1.39 in |
| Size / Dimension [x] | 35.3 mm |
| Size / Dimension [y] | 25 mm |
| Size / Dimension [y] | 0.98 in |
| Size / Dimension [z] | 0.41 " |
| Size / Dimension [z] | 10.4 mm |
| Standard Number | 62368-1 |
| Supplier Device Package | Sixteenth Brick |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 9 V |
| Voltage - Isolation | 2250 VDC |
| Voltage - Output 1 | 3.3 V |
PKU351 Series
| Part | Control Features | Type | Approval Agency | Applications | Current - Output (Max) [Max] | Features | Number of Outputs | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Voltage - Output 1 | Power (Watts) | Supplier Device Package | Mounting Type | Voltage - Isolation | Efficiency | Standard Number | Voltage - Input (Min) [Min] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Package / Case |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Flex Power Modules | Active Low Enable | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 4.2 A | Adjustable Output Remote On/Off Remote Sense | 1 | -40 °C | 100 °C | 36 V | 12 V | 50 W | Sixteenth Brick | Through Hole | 2250 VDC | 88 % | 62368-1 | 9 V | 25 mm | 0.98 in | 0.41 " | 1.39 in | 35.3 mm | 10.4 mm | Sixteenth Brick |
Flex Power Modules | Active Low Enable | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 10 A | Adjustable Output Remote On/Off Remote Sense | 1 | -40 °C | 100 °C | 36 V | 5 V | 50 W | Sixteenth Brick | Through Hole | 2250 VDC | 90 % | 62368-1 | 9 V | 25 mm | 0.98 in | 0.41 " | 1.39 in | 35.3 mm | 10.4 mm | Sixteenth Brick |
Flex Power Modules | Active Low Enable | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 15 A | Adjustable Output Remote On/Off Remote Sense | 1 | -40 °C | 100 °C | 36 V | 3.3 V | 50 W | Sixteenth Brick | Through Hole | 2250 VDC | 90 % | 62368-1 | 9 V | 25 mm | 0.98 in | 0.41 " | 1.39 in | 35.3 mm | 10.4 mm | Sixteenth Brick |
Flex Power Modules | Active Low Enable | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 3.4 A | Adjustable Output Remote On/Off Remote Sense | 1 | -40 °C | 100 °C | 36 V | 15 V | 51 W | Sixteenth Brick | Through Hole | 2250 VDC | 89 % | 62368-1 | 9 V | 25 mm | 0.98 in | 0.41 " | 1.39 in | 35.3 mm | 10.4 mm | Sixteenth Brick |
Flex Power Modules | Active Low Enable | Isolated Module | CB CSA IEC TUV UL | ITE (Commercial) | 2.1 A | Adjustable Output Remote On/Off Remote Sense | 1 | -40 °C | 100 °C | 36 V | 24 V | 50 W | Sixteenth Brick | Through Hole | 2250 VDC | 91 % | 62368-1 | 9 V | 25 mm | 0.98 in | 0.41 " | 1.39 in | 35.3 mm | 10.4 mm | Sixteenth Brick |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 42.70 | |
| 5 | $ 41.11 | |||
| 10 | $ 40.44 | |||
| 25 | $ 39.57 | |||
| 40 | $ 39.55 | |||
Description
General part information
PKU351 Series
Isolated Module DC DC Converter 1 Output 3.3V 15A 9V - 36V Input
