IFX54211MBV33HTSA1

Obsolete

Infineon Technologies

IC REG LINEAR 3.3V 150MA SCT595

Search across all available documentation for this part.

Obsolete

Infineon Technologies

IC REG LINEAR 3.3V 150MA SCT595

Technical Specifications

Parameters and characteristics for this part

Specification	IFX54211MBV33HTSA1

Control Features	Enable
Current - Output	150 mA
Current - Quiescent (Iq)	100 µA
Current - Supply (Max) [Max]	200 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	125 ¯C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm

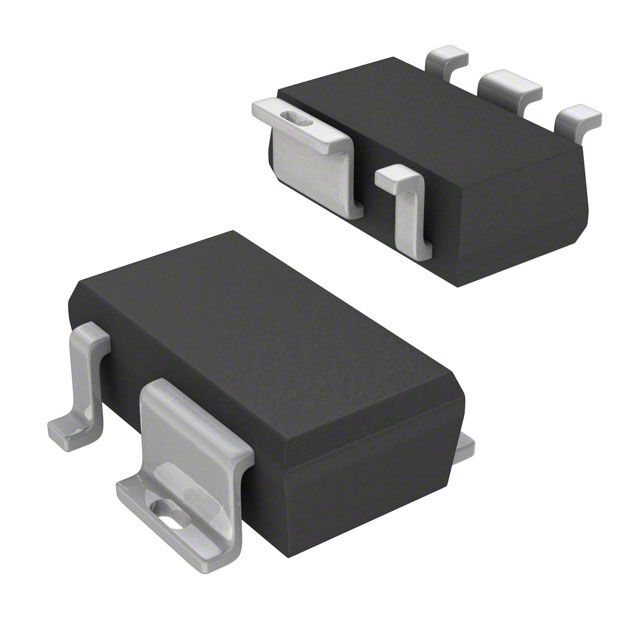

Package / Case	6-SMD (5 Leads), Gull Wing
Protection Features	Short Circuit, Reverse Polarity, Over Current, Over Temperature
PSRR	63 dB
Supplier Device Package	PG-SCT595-5-1
Voltage - Input (Max) [Max]	18 V
Voltage - Output (Min/Fixed)	3.3 V
Voltage Dropout (Max) [Max]	0.57 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Number of Regulators	Control Features	Output Configuration	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed)	Mounting Type	PSRR	Supplier Device Package	Current - Output	Package / Case	Protection Features	Current - Supply (Max) [Max]	Current - Quiescent (Iq)	Voltage - Input (Max) [Max]	Output Type
Infineon Technologies IFX54211MBV33HTSA1	-40 °C	125 ¯C	1	Enable	Positive	0.57 V	3.3 V	Surface Mount	63 dB	PG-SCT595-5-1	150 mA	6-SMD (5 Leads) Gull Wing	Over Current Over Temperature Reverse Polarity Short Circuit	200 µA	100 µA	18 V	1.81 mOhm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 150mA PG-SCT595-5-1

Technical documentation and resources

No documents available
