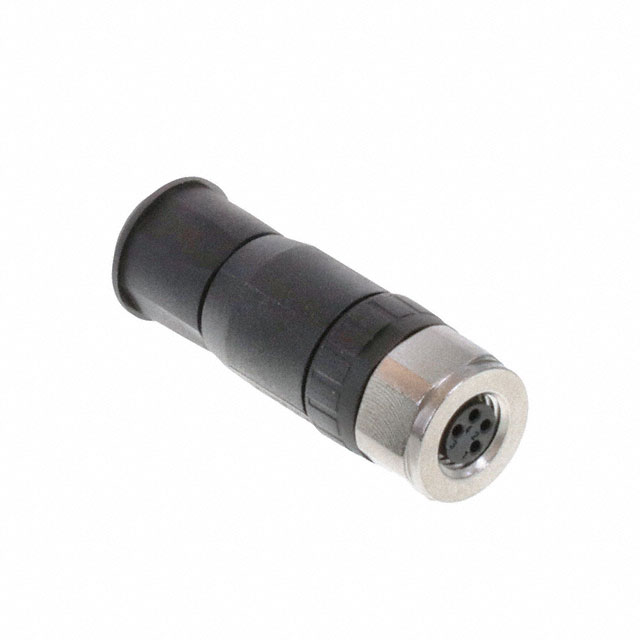

42-00012

Active

Amphenol CONEC

SENSOR CONN, M8, RCPT, 4POS, CABLE ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Amphenol CONEC

SENSOR CONN, M8, RCPT, 4POS, CABLE ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Specification	42-00012

Backshell Material, Plating	Nylon 6, Polyamide (PA6), Glass Filled
Cable Opening [custom]	0.217 in, 0.157 in
Cable Opening [custom]	5.5 mm, 4 mm
Color	Black, Silver
Connector Type	Female Sockets, Plug
Contact Finish - Mating	Gold
Contact Material	Copper Zinc
Current Rating (Amps)	4 A
Features	Coupling Nut, Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyamide (PA6), Nylon 6, Glass Filled
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Orientation	A
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Copper Zinc
Shell Size - Insert	M8-4
Shielding	Unshielded
Termination	Screw
Voltage Rating	30 VDC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Termination	Primary Material	Shielding	Contact Finish - Mating	Cable Opening [custom]	Cable Opening [custom]	Ingress Protection	Material Flammability Rating	Connector Type	Shell Size - Insert	Voltage Rating	Backshell Material, Plating	Color	Shell Material	Current Rating (Amps)	Insert Material	Features	Contact Material	Number of Positions	Shell Finish	Orientation
Amphenol CONEC 42-00011	-30 ░C	85 °C	Free Hanging (In-Line)	Screw	Metal	Unshielded	Gold	0.157 in 0.217 in	4 mm 5.5 mm	IP67 - Dust Tight Waterproof	UL94	Male Pins Receptacle	M8-4	30 VDC	Glass Filled Nylon 6 Polyamide (PA6)	Black Silver	Copper Zinc	4 A	Polyamide (PA6) Nylon 6 Glass Filled	Backshell	Copper Zinc	4	Nickel	A
Amphenol CONEC 42-00012	-30 ░C	85 °C	Free Hanging (In-Line)	Screw	Metal	Unshielded	Gold	0.157 in 0.217 in	4 mm 5.5 mm	IP67 - Dust Tight Waterproof	UL94	Female Sockets Plug	M8-4	30 VDC	Glass Filled Nylon 6 Polyamide (PA6)	Black Silver	Copper Zinc	4 A	Polyamide (PA6) Nylon 6 Glass Filled	Backshell Coupling Nut	Copper Zinc	4	Nickel	A
Amphenol CONEC 42-00010	-30 ░C	85 °C	Free Hanging (In-Line)	Screw	Metal	Unshielded	Gold	0.157 in 0.217 in	4 mm 5.5 mm	IP67 - Dust Tight Waterproof	UL94	Female Sockets Plug	M8-3	60 VDC	Glass Filled Nylon 6 Polyamide (PA6)	Black Silver	Copper Zinc	4 A	Polyamide (PA6) Nylon 6 Glass Filled	Backshell Coupling Nut	Copper Zinc		Nickel	A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Plug, Female Sockets Screw
