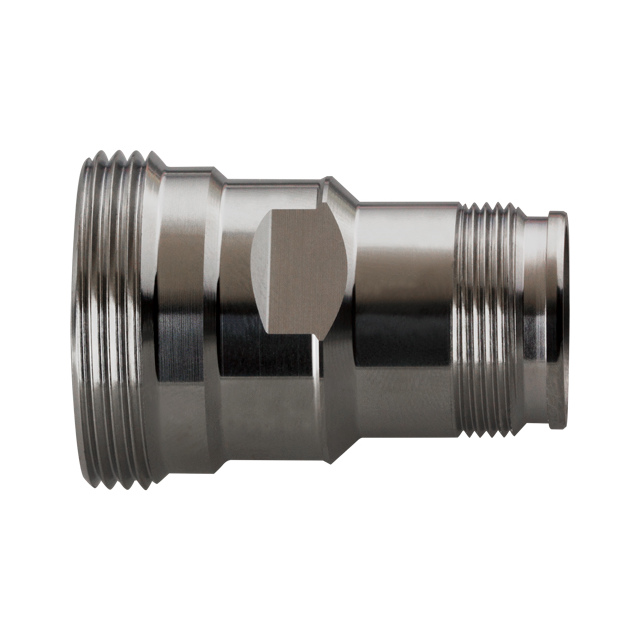

RFD-1685-4

Active

RF Industries

7/16 DIN FEMALE-4.3/10 FEMALE

Search across all available documentation for this part.

Active

RF Industries

7/16 DIN FEMALE-4.3/10 FEMALE

Technical Specifications

Parameters and characteristics for this part

Specification	RFD-1685-4

Adapter Series	7/16 DIN, 4.3/10
Adapter Type	Jack to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Silver
Center Gender	Female to Female
Conversion Type	Between Series
Convert From (Adapter End)	4.3/10 Jack, Female Socket
Convert To (Adapter End)	Female Socket, 7/16 Jack
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-40 °C
Style	Straight

7/16 DIN FEMALE-4.3/10 FEMALE

Part	Body Finish	Body Material	Mounting Type	Center Contact Plating	Center Contact Material	Style	Convert To (Adapter End)	Conversion Type	Impedance	Frequency - Max [Max]	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Adapter Type	Adapter Series	Dielectric Material	Convert From (Adapter End)
RF Industries RFD-1685-4	White Bronze	Brass	Free Hanging (In-Line)	Silver	Beryllium Copper	Straight	7/16 Jack, Female Socket	Between Series	50 Ohms	6000 MHz	Female to Female	-40 °C	155 °C	Jack to Jack	4.3/10, 7/16 DIN	Polytetrafluoroethylene (PTFE)	4.3/10 Jack, Female Socket

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Adapter Coaxial Connector 4.3/10 Jack, Female Socket To 7/16 Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
