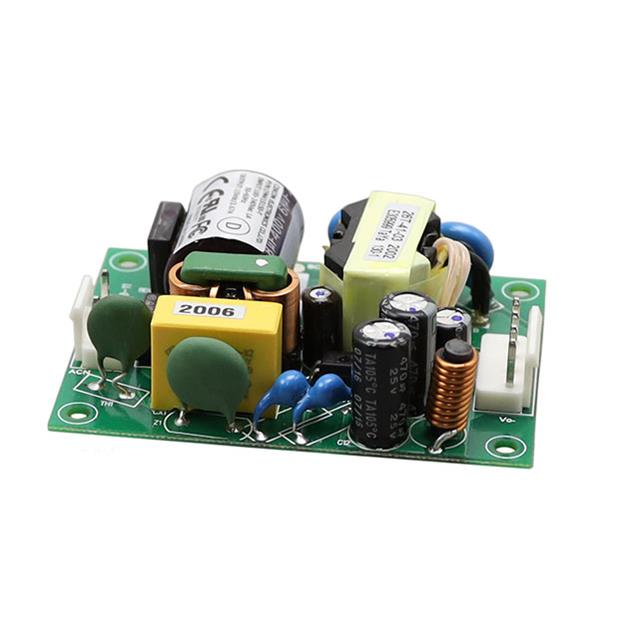

CFM41S150-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CFM41S150-T

Active

Cincon Electronics Co. LTD

AC/DC CONVERTER 15V 40W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CFM41S150-T

Applications	Household Appliances, ITE (Commercial)
Approval Agency	CE, cURus, FCC, DEMKO
Current - Output 1	2.67 A
Efficiency	90 %
Features	Universal Input
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	40 W
Size / Dimension [x]	68.6 mm
Size / Dimension [x]	2.7 in
Size / Dimension [y]	50.8 mm
Size / Dimension [y]	2 in
Size / Dimension [z]	0.78 in
Size / Dimension [z]	19.7 mm
Standard Number	60335-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	90 VAC, 120 VDC
Voltage - Isolation	3000 V
Voltage - Output 1	15 V

CFM41 Series

Part	Voltage - Output 1	Voltage - Isolation	Standard Number	Type	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Efficiency	Number of Outputs	Current - Output 1	Approval Agency	Operating Temperature [Max]	Operating Temperature [Min]	Applications	Mounting Type	Voltage - Input [Max]	Voltage - Input [Min]	Power (Watts)	Features
Cincon Electronics Co. LTD CFM41S360-T	36 V	3000 V	60335-1 62368-1	Open Frame	68.6 mm	0.78 in	50.8 mm	2.7 in	2 in	19.7 mm	90 %	1	1.11 A	CE cURus DEMKO FCC	85 °C	-40 °C	Household Appliances ITE (Commercial)	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	40 W	Universal Input
Cincon Electronics Co. LTD CFM41S240-T	24 V	3000 V	60335-1 62368-1	Open Frame	68.6 mm	0.78 in	50.8 mm	2.7 in	2 in	19.7 mm	90 %	1	1.67 A	CE cURus DEMKO FCC	85 °C	-40 °C	Household Appliances ITE (Commercial)	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	40 W	Universal Input
Cincon Electronics Co. LTD CFM41S150-T	15 V	3000 V	60335-1 62368-1	Open Frame	68.6 mm	0.78 in	50.8 mm	2.7 in	2 in	19.7 mm	90 %	1	2.67 A	CE cURus DEMKO FCC	85 °C	-40 °C	Household Appliances ITE (Commercial)	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	40 W	Universal Input
Cincon Electronics Co. LTD CFM41S480-T	48 V	3000 V	60335-1 62368-1	Open Frame	68.6 mm	0.78 in	50.8 mm	2.7 in	2 in	19.7 mm	90 %	1	830 mA	CE cURus DEMKO FCC	85 °C	-40 °C	Household Appliances ITE (Commercial)	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	40 W	Universal Input
Cincon Electronics Co. LTD CFM41S050-T	5 V	3000 V	60335-1 62368-1	Open Frame	68.6 mm	0.78 in	50.8 mm	2.7 in	2 in	19.7 mm	87 %	1	6 A	CE cURus DEMKO FCC	85 °C	-40 °C	Household Appliances ITE (Commercial)	Chassis Mount	264 VAC 370 VDC	90 VAC 120 VDC	30 W	Universal Input

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 25.69
		5	$ 24.21
		10	$ 23.59
		25	$ 22.80
		50	$ 22.23
		100	$ 21.66
		250	$ 20.94
		500	$ 17.56

Description

General part information

CFM41 Series

Open Frame AC DC Converters 1 Output 15V 90 ~ 264 VAC, 120 ~ 370 VDC Input
