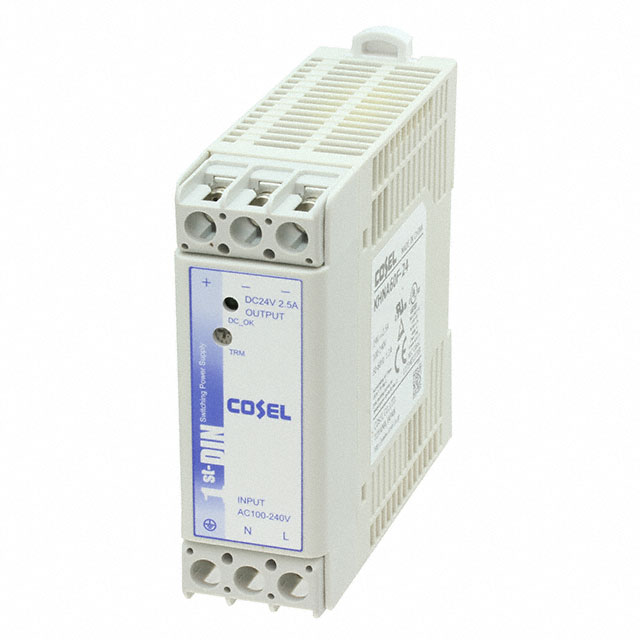

KHNA60F-24

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 60W

Search across all available documentation for this part.

Active

Cosel USA, Inc.

AC/DC DIN RAIL SUPPLY 24V 60W

Technical Specifications

Parameters and characteristics for this part

Specification	KHNA60F-24

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial)
Approval Agency	TUV, CE, cULus, cURus
Current - Output (Max) [Max]	2.5 A
DC Voltage - Input (Max) [Max]	370 V
DC Voltage - Input (Min) [Min]	120 V
Efficiency	91 %
Features	PFC, Remote On/Off, Universal Input, Adjustable Output
Input Type	AC or DC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Size / Dimension [x]	121.2 mm
Size / Dimension [x]	4.77 in
Size / Dimension [y]	1.97 "
Size / Dimension [y]	50 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	60950-1
Voltage - Isolation	3000 V
Voltage - Output 1	24 V

Part	Approval Agency	Input Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Standard Number	Operating Temperature [Min]	Operating Temperature [Max]	Features	Current - Output (Max) [Max]	Voltage - Isolation	DC Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	DC Voltage - Input (Min) [Min]	Efficiency	Number of Outputs	Applications
Cosel USA, Inc. KHNA60F-24	CE cULus cURus TUV	AC or DC	85 VAC	264 VAC	60950-1	-20 C	70 °C	Adjustable Output PFC Remote On/Off Universal Input	2.5 A	3000 V	370 V	121.2 mm	4.77 in	4.88 "	124 mm	1.97 "	50 mm	24 V	120 V	91 %	1	ITE (Commercial)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

AC/DC DIN RAIL SUPPLY 24V 60W
