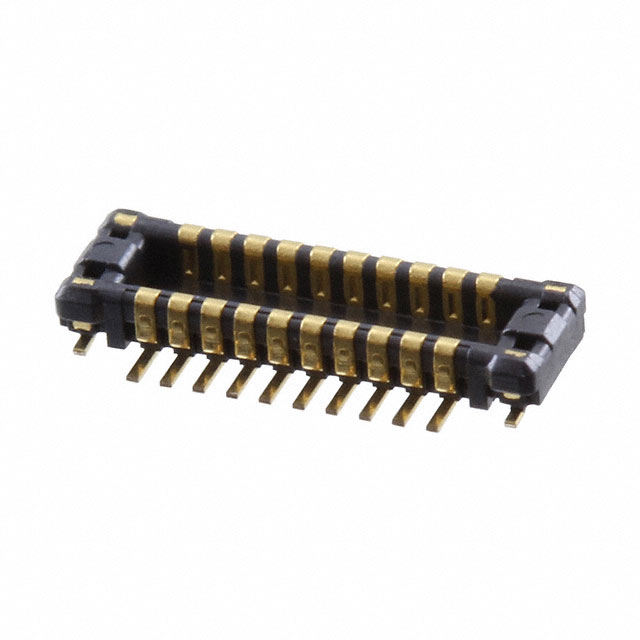

AXT620124A

Active

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Search across all available documentation for this part.

Active

Panasonic Electric Works

CONN HDR 20POS SMD GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	AXT620124A

Connector Type	Header, Center Strip Contacts
Contact Finish	Gold
Features	Solder Retention
Height Above Board [z]	0.84 mm
Height Above Board [z]	0.033 "
Mated Stacking Heights	1 mm
Mounting Type	Surface Mount
Number of Positions	20
Number of Rows	2
Pitch [x]	0.016 in
Pitch [x]	0.4 mm

Part	Pitch [x]	Pitch [x]	Connector Type	Number of Positions	Mounting Type	Mated Stacking Heights	Contact Finish	Number of Rows	Height Above Board [z]	Height Above Board [z]	Features
Panasonic Electric Works AXT620124A	0.016 in	0.4 mm	Header Center Strip Contacts	20	Surface Mount	1 mm	Gold	2	0.84 mm	0.033 "	Solder Retention

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

20 Position Connector Header, Center Strip Contacts Surface Mount Gold

Technical documentation and resources

No documents available
