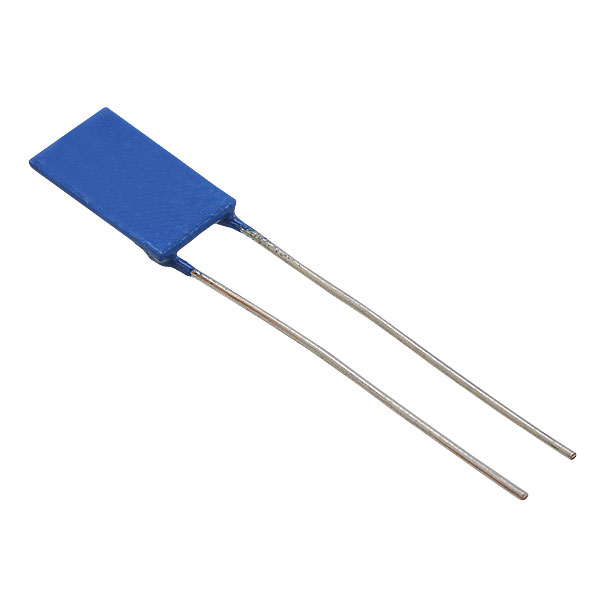

HBA47MFZRE
ActiveTE Connectivity Passive Product
RES 47M OHM 1% 0.4W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
HBA47MFZRE
ActiveTE Connectivity Passive Product
RES 47M OHM 1% 0.4W RADIAL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HBA47MFZRE |
|---|---|
| Composition | Thick Film |
| Features | Pulse Withstanding, High Voltage |
| Height - Seated (Max) [Max] | 0.492 in |
| Height - Seated (Max) [Max] | 12.5 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 0.4 W |
| Resistance | 47 MOhms |
| Size / Dimension [x] | 0.315 " |
| Size / Dimension [x] | 8 mm |
| Size / Dimension [y] | 0.102 " |
| Size / Dimension [y] | 2.6 mm |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.90 | |
| 10 | $ 3.72 | |||
| 500 | $ 2.97 | |||
| 1000 | $ 2.92 | |||
| 2500 | $ 2.86 | |||
| 5000 | $ 2.82 | |||
Description
General part information
HBA Series
47 MOhms ±1% 0.4W Through Hole Resistor Radial High Voltage, Pulse Withstanding Thick Film
Documents
Technical documentation and resources
No documents available
