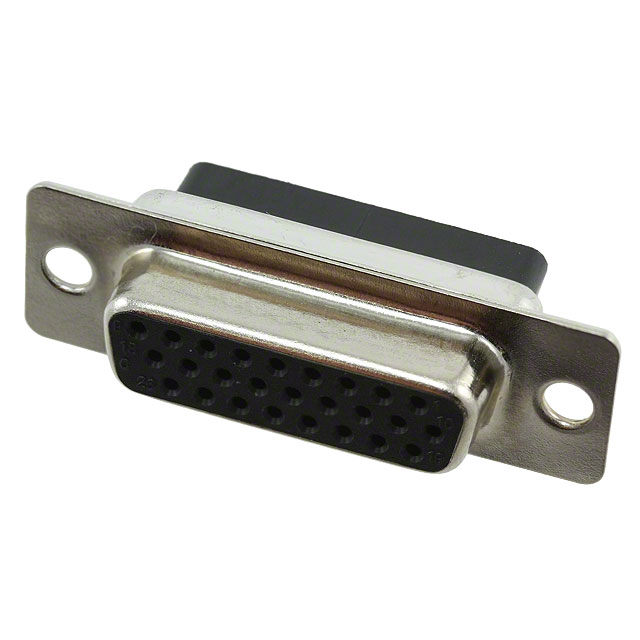

10090931-S260ALF

Obsolete

Amphenol ICC (FCI)

CONN D-SUB HD HOUSING RCPT 26POS

Search across all available documentation for this part.

Obsolete

Amphenol ICC (FCI)

CONN D-SUB HD HOUSING RCPT 26POS

Technical Specifications

Parameters and characteristics for this part

Specification	10090931-S260ALF

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle for Female Contacts
Contact Type	Signal
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	26
Number of Rows	3
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Finish Thickness	2.54 µm
Shell Finish Thickness	100 µin
Shell Material, Finish	Steel, Tin-Nickel Plated
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

Part	Contact Type	Connector Style	Shell Size, Connector Layout	Shell Size, Connector Layout	Shell Material, Finish	Operating Temperature [Max]	Operating Temperature [Min]	Dielectric Material	Note	Mounting Type	Color	Shell Finish Thickness	Shell Finish Thickness	Number of Rows	Flange Feature	Number of Positions	Connector Type	Shell Size, Connector Layout [x]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]
Amphenol ICC (FCI) 10090931-S260ALF	Signal	D-Sub High Density	2	(DA A) High Density	Steel Tin-Nickel Plated	105 ░C	-55 °C	Thermoplastic Glass Filled	Contacts Not Included	Free Hanging (In-Line)	Black	2.54 µm	100 µin	3	Housing/Shell (Unthreaded)	26	Receptacle for Female Contacts
Amphenol ICC (FCI) 10090931-S440ALF	Signal	D-Sub High Density				105 ░C	-55 °C	Thermoplastic Glass Filled	Contacts Not Included	Free Hanging (In-Line)	Black	2.54 µm	100 µin	3	Housing/Shell (Unthreaded)	44	Receptacle for Female Contacts	3	B DB
Amphenol ICC (FCI) 10090931-S150ALF	Signal	D-Sub High Density			Steel Tin-Nickel Plated	105 ░C	-55 °C	Thermoplastic Glass Filled	Contacts Not Included	Free Hanging (In-Line)	Black	2.54 µm	100 µin	3	Housing/Shell (Unthreaded)	15	Receptacle for Female Contacts		DE E	1	High Density
Amphenol ICC (FCI) 10090931-S780ALF	Signal	D-Sub High Density				105 ░C	-55 °C	Thermoplastic Glass Filled	Contacts Not Included	Free Hanging (In-Line)	Black	2.54 µm	100 µin		Housing/Shell (Unthreaded)	78	Receptacle for Female Contacts

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Receptacle for Female Contacts Housing D-Sub, High Density Connector 26 Position
