L77DFE09S

Active

Amphenol ICC (Commercial Products)

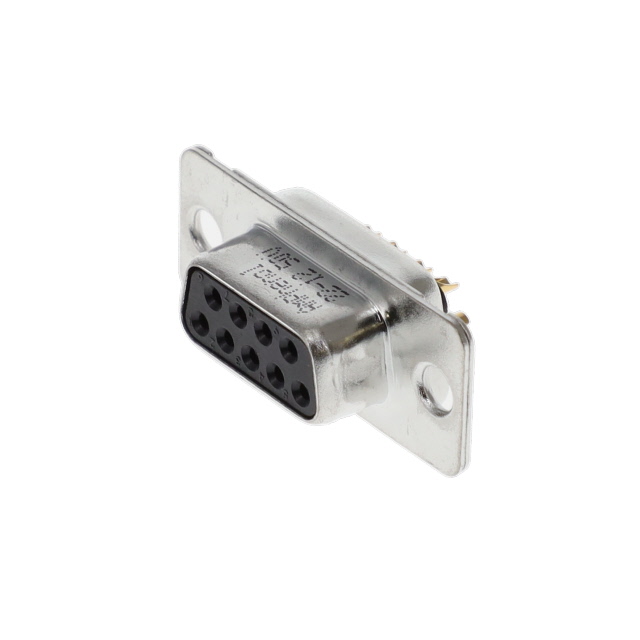

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L77DFE09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L77DFE09S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	300 VDC

L77DFE09 Series

Part	Number of Rows	Backset Spacing	Backset Spacing	Connector Style	Number of Positions	Material Flammability Rating	Color	Contact Finish	Features	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Connector Type	Contact Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Voltage Rating	Mounting Type	Flange Feature	Termination	Contact Finish Thickness	Contact Finish Thickness	Contact Type	Dielectric Material
Amphenol ICC (Commercial Products) L77DFE09SAM4RM6VF	2	0.319 in	8.1 mm	D-Sub	9	UL94 V-0	Black	Gold	Board Lock Mounting Brackets	-55 °C	125 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Right Angle Through Hole	Female Screwlock (4-40) Mating Side	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09SA	2	0.319 in	8.1 mm	D-Sub	9	UL94 V-0	Black	Gold	Mounting Brackets	-55 °C	155 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09SC	2	0.319 in	8.1 mm	D-Sub	9	UL94 V-0	Black	Gold		-55 °C	155 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09STR063	2			D-Sub	9	UL94 V-0	Black	Gold		-55 °C	155 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09S	2			D-Sub	9	UL94 V-0	Black	Gold		-55 °C	125 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC		Housing/Shell (Unthreaded)		0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09S1BMN	2	0.406 in	10.3 mm	D-Sub	9	UL94 V-0	Black	Gold	Mounting Brackets	-55 °C	125 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09S1ATNRM6	2	0.406 in	10.3 mm	D-Sub	9	UL94 V-0	Black	Gold	Board Lock Mounting Brackets	-55 °C	125 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Right Angle Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09SU	2			D-Sub	9	UL94 V-0	Black	Gold		-55 °C	125 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09POL2	2			D-Sub	9	UL94 V-0	Black	Gold	Grounding Indents	-55 °C	155 °C	7.5 A	Male Pins Plug	Brass	DE E	1	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Solder	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
Amphenol ICC (Commercial Products) L77DFE09SF179	2			D-Sub	9	UL94 V-0	Black	Gold		-55 °C	155 °C	7.5 A	Receptacle Female Sockets	Copper Alloy	DE E	1	300 VDC	Panel Mount Through Hole	Housing/Shell (Unthreaded)	Wire Wrap	0.51 µm	20 µin	Signal	Thermoplastic Glass Filled
