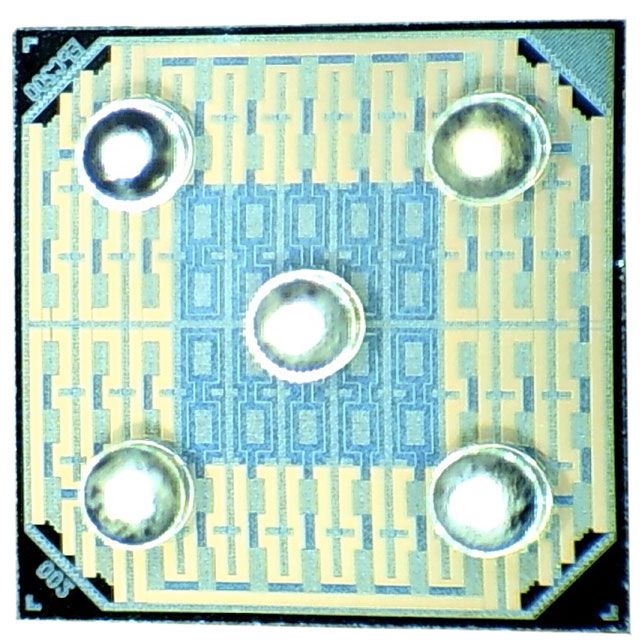

EPC200-CSP5

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 5XFBGA

Search across all available documentation for this part.

Obsolete

ESPROS Photonics AG

SENSOR PHOTODIODE 850NM 5XFBGA

Technical Specifications

Parameters and characteristics for this part

SENSOR PHOTODIODE 850NM 5XFBGA

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Color - Enhanced	Response Time	Wavelength	Spectral Range [Max]	Spectral Range [Min]	Voltage - DC Reverse (Vr) (Max) [Max]	Responsivity @ nm	Viewing Angle	Package / Case
ESPROS Photonics AG EPC200-CSP5	85 °C	-40 °C	Surface Mount	Infrared (NIR), Red	300 ns	850 nm	1030 nm	400 nm	20 V	0.43 A/W, 0.61 A/W	150 °	5-XFBGA, CSPBGA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Photodiode 850nm 300ns 150° 5-XFBGA, CSPBGA
