796634-4

Active

TE Connectivity AMP Connectors

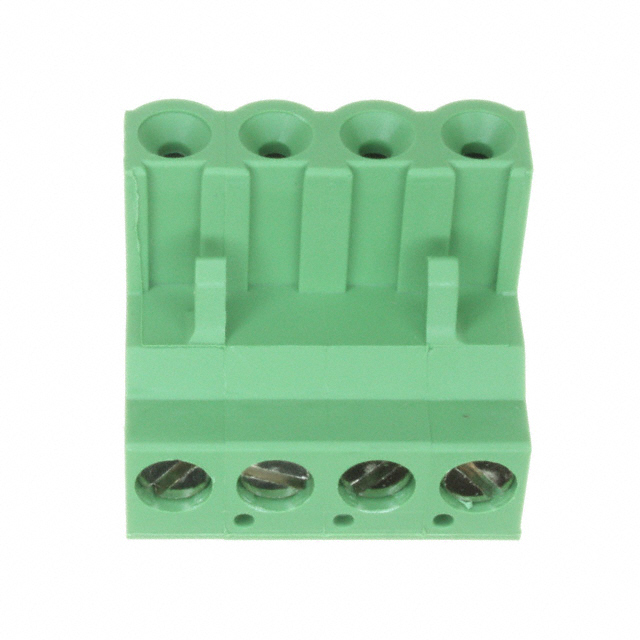

TERM BLOCK PLUG 4POS STR 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

796634-4

Active

TE Connectivity AMP Connectors

TERM BLOCK PLUG 4POS STR 5.08MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	796634-4	796634 Series

Color	Green	Green
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Mating Finish	Tin	Tin, Gold
Features	-	Positions Stamped, Retention Latches (Non-Wire Side)
Insulation Height	0.61 in	0.61 in
Insulation Height	15.49 mm	15.49 mm
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Number of Levels	1	1
Number of Positions	4	2 - 24
Number of Positions	-	16
Operating Temperature [Max]	110 °C	110 °C
Operating Temperature [Min]	-40 °C	-40 °C
Pitch [x]	0.2 in	0.2 in
Pitch [x]	5.08 mm	5.08 mm
Positions Per Level	4	2 - 25
Screw Size	M3	M3
Termination Style	Screw - Rising Cage Clamp	Screw - Rising Cage Clamp
Torque - Screw	0.79 Nm	0.79 Nm
Torque - Screw	7 Lb-In	7 Lb-In
Type	Plug, Female Sockets	Plug, Female Sockets
Voltage - UL	300 V	300 V
Wire Gauge or Range - AWG [Max]	30 AWG	30 AWG
Wire Gauge or Range - AWG [Min]	12 AWG	12 AWG
Wire Gauge or Range - mm˛ [Max]	3 mm˛	3 mm˛
Wire Gauge or Range - mm˛ [Min]	0.05 mm˛	0.05 mm˛
Wire Gauge or Range - mm²	-	0.05 mm²
Wire Gauge or Range - mm²	-	3 mm²
Wire Strip Length [Max]	7.5 mm	7.5 mm
Wire Strip Length [Min]	6 mm	6 mm

796634 Series

TERM BLOCK PLUG 8POS STR 5.08MM

Part	Features	Pitch [x]	Pitch [x]	Screw Size	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Contact Mating Finish	Number of Positions	Material Flammability Rating	Color	Type	Positions Per Level	Torque - Screw	Torque - Screw	Operating Temperature [Min]	Operating Temperature [Max]	Contact Material	Mounting Type	Insulation Height	Insulation Height	Number of Levels	Termination Style	Wire Strip Length [Max]	Wire Strip Length [Min]	Voltage - UL	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]
TE Connectivity AMP Connectors 2-796634-7	Positions Stamped, Retention Latches (Non-Wire Side)	0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin	8	UL94 V-0	Green	Plug, Female Sockets	8	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796634-5		0.2 in	5.08 mm	M3			Tin		UL94 V-0	Green	Plug, Female Sockets	5	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 2-796634-4		0.2 in	5.08 mm	M3			Tin	24	UL94 V-0	Green	Plug, Female Sockets		0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 2-796634-0		0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin	20	UL94 V-0	Green	Plug, Female Sockets	20	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 4-796634-1	Positions Stamped, Retention Latches (Non-Wire Side)	0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin	11	UL94 V-0	Green	Plug, Female Sockets	11	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796634-4		0.2 in	5.08 mm	M3			Tin	4	UL94 V-0	Green	Plug, Female Sockets	4	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 2-796634-5		0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin		UL94 V-0	Green	Plug, Female Sockets	25	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 6-796634-8	Positions Stamped, Retention Latches (Non-Wire Side)	0.2 in	5.08 mm	M3			Tin	18	UL94 V-0	Green	Plug, Female Sockets	18	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG	3 mm˛	0.05 mm˛
TE Connectivity AMP Connectors 1-796634-8		0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin	18	UL94 V-0	Green	Plug, Female Sockets	18	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
TE Connectivity AMP Connectors 796634-8		0.2 in	5.08 mm	M3	0.05 mm²	3 mm²	Tin	8	UL94 V-0	Green	Plug, Female Sockets	8	0.79 Nm	7 Lb-In	-40 °C	110 °C	Phosphor Bronze	Free Hanging (In-Line)	0.61 in	15.49 mm	1	Screw - Rising Cage Clamp	7.5 mm	6 mm	300 V	30 AWG	12 AWG
