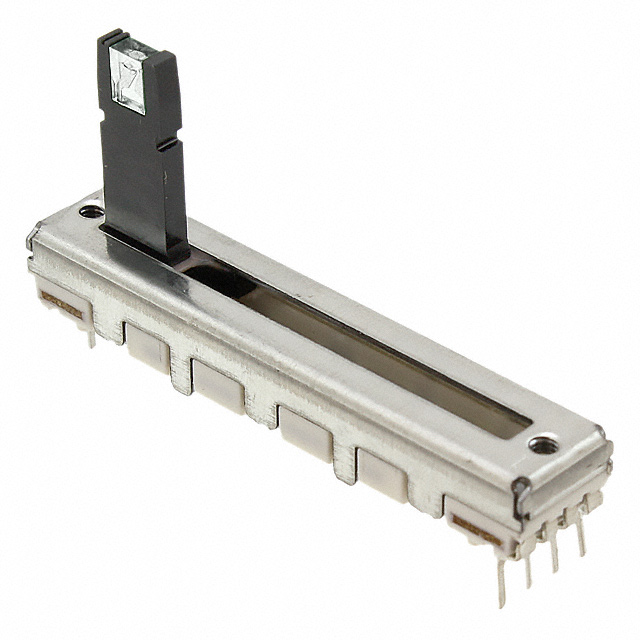

PTL30-15R1-104B2

Active

Bourns Inc.

SLIDE POT 100K OHM 0.1W TOP 30MM

Search across all available documentation for this part.

Active

Bourns Inc.

SLIDE POT 100K OHM 0.1W TOP 30MM

Technical Specifications

Parameters and characteristics for this part

Part	Fader Type	Adjustment Type	Travel Range	Tolerance	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Power (Watts)	Power (Watts)	Resistance
Bourns Inc. PTL30-10G1-103B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	10000 Ohms
Bourns Inc. PTL30-19G1-103B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	10000 Ohms
Bourns Inc. PTL30-15O0-105B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	1 MOhms
Bourns Inc. PTL30-15O0-102B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	1000 Ohms
Bourns Inc. PTL30-15O1-503B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	50 kOhms
Bourns Inc. PTL30-19A1-103B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	10000 Ohms
Bourns Inc. PTL30-15RG-103B1	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	10000 Ohms
Bourns Inc. PTL30-15R1-104B2	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	100 kOhms
Bourns Inc. PTL30-15W1-102B1	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	1000 Ohms
Bourns Inc. PTL30-15W1-103B1	LED Standard	Top	30 mm	20 %	Through Hole	45 mm	9 mm	1.772 in	7 mm	0.354 in	0.276 in	0.1 W	0.1 W	10000 Ohms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1200	$ 1.59

General part information

100 kOhms 0.1W, 1/10W Through Hole Slide Potentiometer Top Adjustment Type
