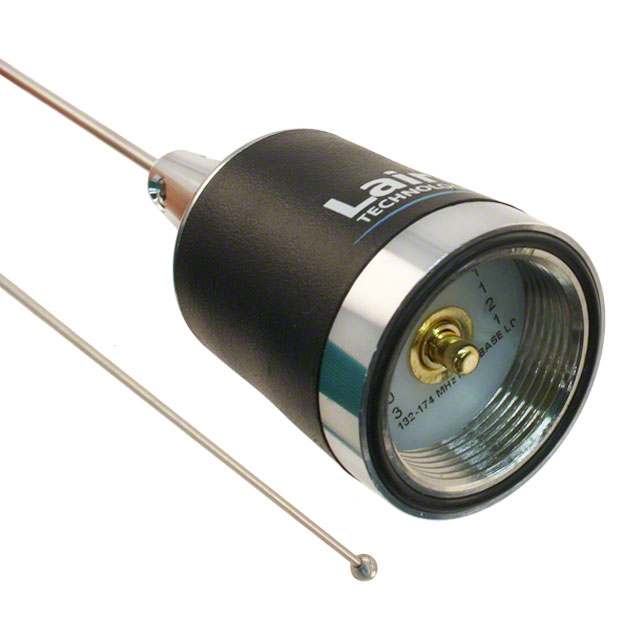

B1322N

Active

TE Connectivity Raychem Cable Protection

WHIP,MC,CTP,132-174MHZ 143MHZ,2.4,CH,NGP

Search across all available documentation for this part.

Active

TE Connectivity Raychem Cable Protection

WHIP,MC,CTP,132-174MHZ 143MHZ,2.4,CH,NGP

Technical Specifications

Parameters and characteristics for this part

Part	Frequency Group	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Gain	Termination	Power - Max [Max]	Number of Bands	Mounting Type	Height (Max)	Height (Max) [Max]	Antenna Type	VSWR	Ingress Protection
TE Connectivity Raychem Cable Protection B1322W	VHF	132 MHz	132 MHz	174 MHz	2.4 dBi	NMO	100 W	1	Base Mount	102 cm	40.157 in	Whip Straight	2
TE Connectivity Raychem Cable Protection B1322N	VHF	153 MHz	132 MHz	174 MHz	2.4 dBi	NMO		1	Base Mount	144.78 cm	57 "	Whip Straight	2
TE Connectivity Raychem Cable Protection B1322WS	VHF	132 MHz	132 MHz	174 MHz	2.4 dBi	NMO	100 W	1	Base Mount	102 cm	40.157 in	Whip Straight	2
TE Connectivity Raychem Cable Protection B1322NS	VHF	153 MHz	132 MHz	174 MHz	2.4 dBi	NMO		1	Base Mount	144.78 cm	57 "	Whip Straight	2	IP67

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Whip Antenna, Single Band, VHF / Vehicular, External Mount, Stud/Screw/Lug Mount, NMO, Omnidirectional, Single Port, 0 < 3 dBi Peak Gain
