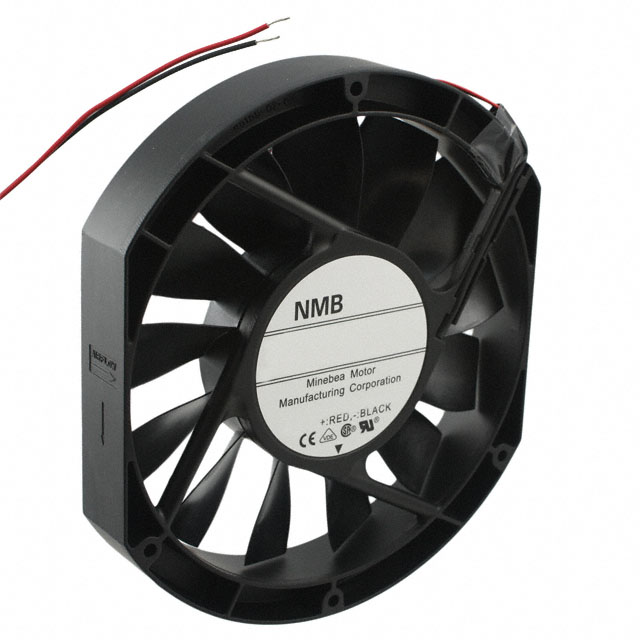

5910PL-05W-B50-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 172X25.4MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
5910PL-05W-B50-L00
ObsoleteNMB TECHNOLOGIES
FAN AXIAL 172X25.4MM 24VDC WIRE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 5910PL-05W-B50-L00 |
|---|---|
| Air Flow | 7 mł/min |
| Air Flow | 250 CFM |
| Approval Agency | UL, CE, VDE, CSA |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 62.5 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 24 W |
| RPM | 3500 RPM |
| Size / Dimension | Rectangular/Rounded |
| Size / Dimension [x] | 172 mm |
| Size / Dimension [z] | 150 mm |
| Static Pressure | 0.657 in H2O |
| Static Pressure | 163.7 Pa |
| Termination | 2 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 30 V |
| Voltage Range [Min] | 12 VDC |
| Weight | 500 g |
| Weight | 1.1 lbs |
| Width [y] | 25.4 mm |
5910PL Series
| Part | Weight | Weight | Static Pressure | Static Pressure | Features | Material - Blade | Material - Frame | Size / Dimension | Size / Dimension [z] | Size / Dimension [x] | Width [y] | RPM | Current Rating (Amps) | Voltage - Rated | Termination | Power (Watts) | Voltage Range [Max] | Voltage Range [Min] | Fan Type | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Noise | Air Flow | Air Flow | Bearing Type | Approval Agency | Voltage - Rated [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 144.5 Pa | 0.58 in H2O | Speed Sensor (Tach) | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3500 RPM | 1.85 A | 12 VDC | 3 Wire Leads | 22.2 W | 18 VDC | 6 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 61.5 dB(A) | 6.33 m³/min | 225.9 CFM | Ball | CE CSA UL VDE | |
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 163.7 Pa | 0.657 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3500 RPM | 0.51 A | 2 Wire Leads | 24.5 W | 60 V | 25 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 62.5 dB | 7 mł/min | 250 CFM | Ball | CE CSA UL VDE | 48 VDC | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 187 Pa | 0.751 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3750 RPM | 1.16 A | 24 VDC | 2 Wire Leads | 27.8 W | 30 V | 12 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 62.9 dB | 7.56 mł/min | 270 CFM | Ball | CE CSA UL VDE | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 92.2 Pa | 0.37 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 2850 RPM | 580 mA | 24 VDC | 2 Wire Leads | 13.9 W | 30 V | 12 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 57 dB | 5.32 m³/min | 190 CFM | Ball | CE CSA UL VDE | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 75.9 Pa | 0.305 in H2O | Speed Sensor (Tach) | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 2500 RPM | 0.22 A | 3 Wire Leads | 10.6 W | 60 V | 25 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 54.1 dB | 4.76 m³/min | 170 CFM | Ball | CE CSA UL VDE | 48 VDC | |
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 141 Pa | 0.566 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3350 RPM | 0.86 A | 24 VDC | 2 Wire Leads | 30 V | 12 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 61.5 dB(A) | 6.44 m³/min | 230 CFM | Ball | CE CSA UL VDE | |||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 115.2 Pa | 0.462 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3150 RPM | 370 mA | 2 Wire Leads | 17.8 W | 60 V | 25 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 58.9 dB | 5.88 m³/min | 210 CFM | Ball | CE CSA UL VDE | 48 VDC | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 115.2 Pa | 0.462 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3150 RPM | 1.52 A | 12 VDC | 2 Wire Leads | 18.2 W | 18 VDC | 6 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 58.9 dB | 5.88 m³/min | 210 CFM | Ball | CE CSA UL VDE | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 163.7 Pa | 0.657 in H2O | Speed Sensor (Tach) | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3500 RPM | 24 VDC | 3 Wire Leads | 24 W | 30 V | 12 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 62.5 dB | 7 mł/min | 250 CFM | Ball | CE CSA UL VDE | ||
NMB TECHNOLOGIES | 500 g | 1.1 lbs | 163.7 Pa | 0.657 in H2O | Plastic | Aluminum | Rectangular/Rounded | 150 mm | 172 mm | 25.4 mm | 3500 RPM | 24 VDC | 2 Wire Leads | 24 W | 30 V | 12 VDC | Tubeaxial | 70 °C | 70 °C | -10 °C | -10 °C | 62.5 dB | 7 mł/min | 250 CFM | Ball | CE CSA UL VDE |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 30 | $ 60.62 | |
Description
General part information
5910PL Series
Fan Tubeaxial 24VDC Rectangular/Rounded - 172mm L x 150mm H Ball 250.0 CFM (7.00m³/min) 2 Wire Leads
